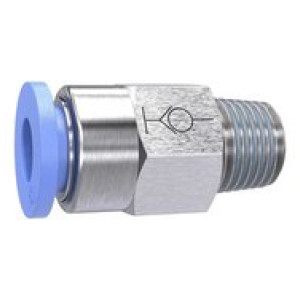

Ravni Vtični fiting »blue serija«, samozaporni, R 1/4 o.
SKU: 151455RIE
EAN: 4047322593113
Straight Push-in fitting »Blue Series«, Self-locking, R 1/4 o., for hose exterior Ø 10 mm, pmax 10 barThe air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Čas dobave: Predvidoma 3 - 5 dni
9,11 €
Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
151460RIE | R 1/2 | 12 | 21 | 36.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,21 € | | |
151453RIE | R 1/4 | 6 | 14 | 27.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,70 € | | |
151456RIE | R 3/8 | 8 | 17 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 9,11 € | | |
151450RIE | R 1/8 | 4 | 10 | 24.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,76 € | | |
151454RIE | R 1/4 | 8 | 14 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,38 € | | |
151458RIE | R 3/8 | 12 | 21 | 36.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,85 € | | |
151457RIE | R 3/8 | 10 | 17 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,50 € | | |
151459RIE | R 1/2 | 10 | 21 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,36 € | | |
151451RIE | R 1/8 | 6 | 12 | 27.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,76 € | | |
151455RIE | R 1/4 | 10 | 17 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,11 € | | |
151452RIE | R 1/8 | 8 | 14 | 31.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,38 € | |
Opis
The air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 60 |
Tesnilo | NBR |
Srednje | Compressed air |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic blue |
Navoj | R 1/4 |
Za cevi O.D. [mm] | 10 |
L1 [mm] | 35.0 |
a/f [mm] | 17 |
Standardni navoj | ISO 7-1 |
Material | Plastic and nickel-plated brass |
