Ravni vijačni prik. Value line, G 1/2 , Ø 12
SKU: 115915RIE
EAN: 4047322183321

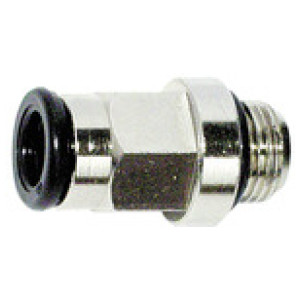

Straight screw-in fitting »value line«, G 1/2 o., for hose exterior Ø 12, Working pressure -0.98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Šifra | Navoj | Rokav | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
115918RIE | G 1/4 | Hostaform | 6 | 11 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,82 € | | |
115919RIE | G 1/4 | Hostaform | 8 | 13 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,82 € | | |
115915RIE | G 1/2 | Black nickel-plated | 12 | 18 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,81 € | | |
115925RIE | G 3/8 | Hostaform | 8 | 13 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,39 € | | |
115912RIE | M5 | Hostaform | 4 | - | 20.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,35 € | | |
115913RIE | M5 | Hostaform | 6 | - | 22.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,44 € | | |
115921RIE | G 1/8 | Hostaform | 6 | 11 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,59 € | | |
115917RIE | G 1/4 | Hostaform | 4 | 9 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,73 € | | |
115916RIE | G 1/4 | Black nickel-plated | 10 | 16 | 29.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
115923RIE | G 3/8 | Black nickel-plated | 10 | 16 | 29.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
115920RIE | G 1/8 | Hostaform | 4 | 9 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,44 € | | |
115914RIE | G 1/2 | Black nickel-plated | 10 | 16 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
115924RIE | G 3/8 | Black nickel-plated | 12 | 18 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,05 € | | |
115922RIE | G 1/8 | Hostaform | 8 | 13 | 26.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,73 € | |
Opis
Straight screw-in fitting »value line«, G 1/2 o., for hose exterior Ø 12, Working pressure -0.98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Tehnični podatki in specifikacije
Serija | value line |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 80 |
Tesnilo | NBR, silicone-free |
Priporočena cev | PA, PU |
Vpenjalo | Stainless steel AISI 316 |
Rokav | Black nickel-plated |
Navoj | G 1/2 |
Za cevi O.D. [mm] | 12 |
L1 [mm] | 31.0 |
a/f [mm] | 18 |
Material | Nickel-plated brass |
