* slike so simbolične
Ravni vijačni prik. M, NPT 1/8 zun. premer Ø8, galvan.jeklo
SKU: 159648RIE
EAN: 4047322642781

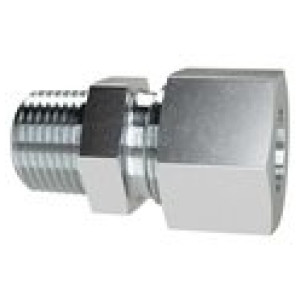

Straight screw-in fitting, NPT 1/8 o., Pipe exterior Ø 8 mm, PN max. 100 bar, A/F1 14, A/F2 12, galvanised steel, NPT threat
Male connector, male thread NPT, very light type
Čas dobave: Predvidoma 3 - 5 dni
3,60 €
Šifra | O.D. cev [mm] | a/f 1 [mm] | a/f 2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
159646RIE | 4 | 10 | 11 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,27 € | | |
159648RIE | 8 | 14 | 12 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,60 € | | |
159647RIE | 6 | 12 | 11 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,20 € | |
Opis
Straight screw-in fitting, NPT 1/8 o., Pipe exterior Ø 8 mm, PN max. 100 bar, A/F1 14, A/F2 12, galvanised steel, NPT threat
Male connector, male thread NPT, very light type
Tehnični podatki in specifikacije

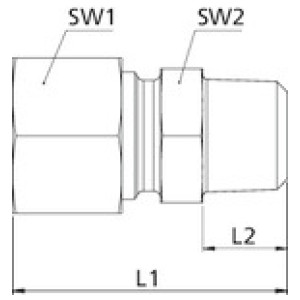

Material | Galvanised steel (DIN 2353) |
Navoj | NPT 1/8 |
O.D. cev [mm] | 8 |
L1 [mm] | 30.0 |
L2 [mm] | 10.0 |
a/f 1 [mm] | 14 |
a/f 2 [mm] | 12 |
PN [bar] | 100 |
