* slike so simbolične

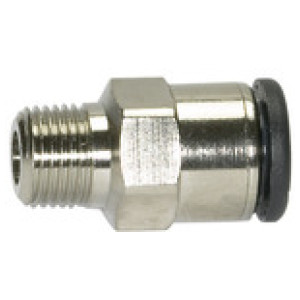

Ravni potisni fiting »klik klak« R 1/4 o., Cev zunanja Ø 6
SKU: 108587RIE
EAN: 4047322208246
Straight push-in fitting »click-clock«, R 1/4 o., for hose exterior Ø 6 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
108586RIE | R 1/8 | 5 | 8 | 13 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,06 € | | |
108587RIE | R 1/4 | 4 | 6 | 12 | 22.3 | Čas dobave: Predvidoma 3 - 5 dni | 2,15 € | | |
108591RIE | R 3/8 | 7 | 10 | 16 | 28.9 | Čas dobave: Predvidoma 3 - 5 dni | 3,75 € | | |
108588RIE | R 1/4 | 6 | 8 | 14 | 25.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,27 € | | |
108590RIE | R 3/8 | 6 | 8 | 14 | 24.9 | Čas dobave: Predvidoma 3 - 5 dni | 3,45 € | | |
108592RIE | R 3/8 | 10 | 12 | 19 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,62 € | | |
108584RIE | R 1/8 | 3 | 4 | 10 | 18.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,99 € | | |
108589RIE | R 1/4 | 7 | 10 | 16 | 28.9 | Čas dobave: Predvidoma 3 - 5 dni | 3,55 € | | |
108585RIE | R 1/8 | 4 | 6 | 12 | 22.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,00 € | | |
108593RIE | R 1/2 | 10 | 12 | 19 | 26.6 | Čas dobave: Predvidoma 3 - 5 dni | 5,14 € | |
Opis
Straight push-in fitting »click-clock«, R 1/4 o., for hose exterior Ø 6 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
Serija | click-clock |
Min. delovni tlak [bar] | -0.99 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 80 |
Priporočena cev | PA, PU |
Rokav | Hostaform |
Vpenjalni obroč | Stainless steel |
Navoj | R 1/4 |
Za cevi O.D. [mm] | 6 |

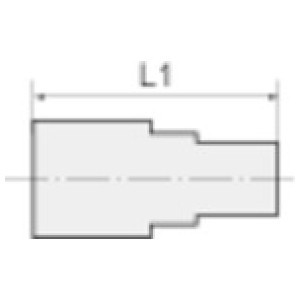

L1 [mm] | 22.3 |
a/f [mm] | 12 |
Šestkotna glava vtičnice [mm] | 4 |
Material | Nickel-plated brass |
