Ravni pot.i fiting Metallica R 3/8, Cev zunanja Ø 10
SKU: 108891RIE
EAN: 4047322278980
Straight push-in fitting »metallica«, R 3/8 o., for hose exterior Ø 10 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
5,80 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 108891RIE | R 3/8 | 10 | 17 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,80 € |  | |
| 108883RIE | R 1/8 | 6 | 11 | 24.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,73 € | | |
| 108884RIE | R 1/8 | 8 | 13 | 27.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,98 € | | |
| 108887RIE | R 1/4 | 8 | 13 | 27.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,16 € | | |
| 108893RIE | R 1/2 | 12 | 22 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,48 € | | |
| 108886RIE | R 1/4 | 6 | 14 | 24.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,16 € | | |
| 108890RIE | R 3/8 | 8 | 17 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,80 € | | |
| 108885RIE | R 1/4 | 4 | 14 | 22.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,70 € | | |
| 108892RIE | R 3/8 | 12 | 17 | 30.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,03 € | | |
| 108888RIE | R 1/4 | 10 | 16 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,65 € | | |
| 108889RIE | R 1/4 | 12 | 17 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,39 € | | |
| 108882RIE | R 1/8 | 4 | 10 | 22.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,73 € | |
Opis
Straight push-in fitting »metallica«, R 3/8 o., for hose exterior Ø 10 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Male connector, conical male thread, coated with outer hex |
| Navoj | R 3/8 |
| Za cevi O.D. [mm] | 10 |

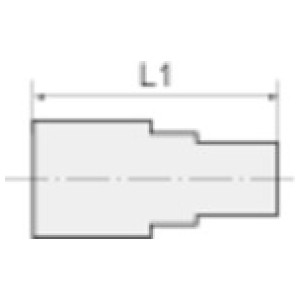

| L1 [mm] | 32.5 |
| a/f [mm] | 17 |
| Material | Nickel-plated brass |
