* slike so simbolične

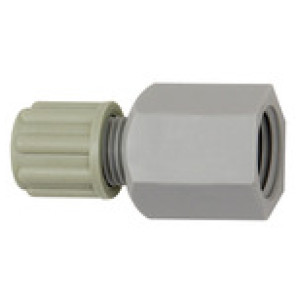

Ravni navojni priključek Ž G 3/8 i., za za cev 9/12 mm, AF 22, PA
SKU: 110790RIE
EAN: 4047322022217
Straight screw-on fitting G 3/8 i., for hose 9/12 mm, AF 22, Working pressure max. 10 bar (20 °C)/max. 1 bar (60 °C), PA
Manufactured from high impact-resistant, UV-stabilised engineering plastic, extremely resistant to weathering.
Good chemical resistance to benzine, diesel oil, fuel oil and alkalis. Not suitable for use with acids.
Čas dobave: Predvidoma 3 - 5 dni
12,61 €

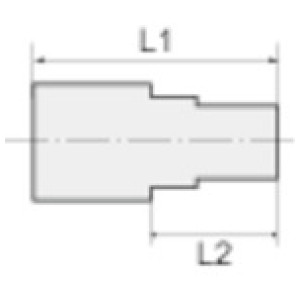

| Šifra | Navoj | Za cevi [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 110794RIE | G 1/2 | 9/12 | 27 | 28.0 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,83 € |  | |
| 110788RIE | G 3/8 | 6/8 | 22 | 21.0 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,70 € | | |
| 110789RIE | G 3/8 | 8/10 | 22 | 24.0 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,70 € | | |
| 110779RIE | G 1/8 | 4/6 | 14 | 17.0 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,48 € | | |
| 110780RIE | G 1/8 | 6/8 | 17 | 21.0 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,43 € | | |
| 110786RIE | G 1/4 | 9/12 | 22 | 28.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,46 € | | |
| 110793RIE | G 1/2 | 8/10 | 27 | 24.0 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,38 € | | |
| 110785RIE | G 1/4 | 8/10 | 19 | 24.0 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,37 € | | |
| 110787RIE | G 3/8 | 4/6 | 22 | 17.0 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,73 € | | |
| 110792RIE | G 1/2 | 6/8 | 27 | 21.0 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,67 € | | |
| 110782RIE | G 1/8 | 9/12 | 22 | 28.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,14 € | | |
| 110791RIE | G 1/2 | 4/6 | 27 | 17.0 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,45 € | | |
| 110781RIE | G 1/8 | 8/10 | 19 | 24.0 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,75 € | | |
| 110783RIE | G 1/4 | 4/6 | 17 | 17.0 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,46 € | | |
| 110784RIE | G 1/4 | 6/8 | 17 | 21.0 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,59 € | | |
| 110790RIE | G 3/8 | 9/12 | 22 | 28.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,61 € | |
Opis
Straight screw-on fitting G 3/8 i., for hose 9/12 mm, AF 22, Working pressure max. 10 bar (20 °C)/max. 1 bar (60 °C), PA
Manufactured from high impact-resistant, UV-stabilised engineering plastic, extremely resistant to weathering.
Good chemical resistance to benzine, diesel oil, fuel oil and alkalis. Not suitable for use with acids.
Tehnični podatki in specifikacije
| Max. delovni tlak pri 20 ° C [bar] | 10 |
| Max. delovni tlak pri 60 ° C [bar] | 1 |
| Navoj | G 3/8 |
| Za cevi [mm] | 9/12 |
| L1 [mm] | 48.0 |
| a/f [mm] | 22 |
| L2 [mm] | 28.0 |
| Telo vijačnega priključka | Polyamide (PA) |
| Vpenjalni obroč | Polypropylene (PP) |
| Narezana matica | Polypropylene (PP) |
