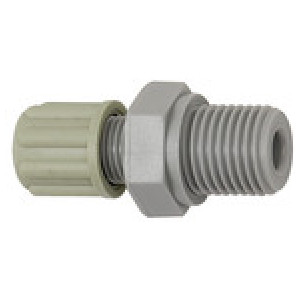

Ravni navoj. prik. M, G 1/2 , za 4/6 mm, AF 27, PA
SKU: 110775RIE
EAN: 4047322021883
Straight screw-in fitting, G 1/2 o., for hose 4/6 mm, AF 27, Working pressure max. 10 bar (20°C)/max. 1 bar (60°C), PA
Manufactured from high impact-resistant, UV-stabilised engineering plastic, extremely resistant to weathering.
Good chemical resistance to benzine, diesel oil, fuel oil and alkalis. Not suitable for use with acids.

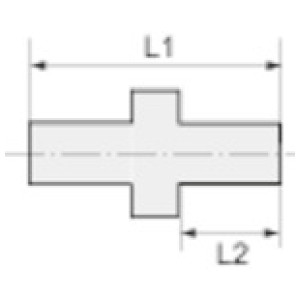

Šifra | Navoj | Za cevi [mm] | L2 [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
110767RIE | G 1/4 | 4/6 | 12.0 | 17 | 37.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,83 € | | |
110765RIE | G 1/8 | 8/10 | 8.0 | 19 | 40.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,01 € | | |
110771RIE | G 3/8 | 4/6 | 12.0 | 22 | 38.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,56 € | | |
110773RIE | G 3/8 | 8/10 | 12.0 | 22 | 45.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,72 € | | |
110772RIE | G 3/8 | 6/8 | 12.0 | 22 | 42.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,32 € | | |
110775RIE | G 1/2 | 4/6 | 14.0 | 27 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,32 € | | |
110770RIE | G 1/4 | 9/12 | 12.0 | 22 | 48.5 | Čas dobave: Predvidoma 3 - 5 dni | 13,18 € | | |
110764RIE | G 1/8 | 6/8 | 8.0 | 17 | 36.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,88 € | | |
110763RIE | G 1/8 | 4/6 | 8.0 | 14 | 31.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,32 € | | |
110774RIE | G 3/8 | 9/12 | 12.0 | 22 | 49.5 | Čas dobave: Predvidoma 3 - 5 dni | 12,61 € | | |
110766RIE | G 1/8 | 9/12 | 8.0 | 22 | 44.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,10 € | | |
110777RIE | G 1/2 | 8/10 | 14.0 | 27 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,25 € | | |
110768RIE | G 1/4 | 6/8 | 12.0 | 17 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,45 € | | |
110778RIE | G 1/2 | 9/12 | 14.0 | 27 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,47 € | | |
110769RIE | G 1/4 | 8/10 | 12.0 | 19 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,56 € | | |
110776RIE | G 1/2 | 6/8 | 14.0 | 27 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,32 € | |
Opis
Straight screw-in fitting, G 1/2 o., for hose 4/6 mm, AF 27, Working pressure max. 10 bar (20°C)/max. 1 bar (60°C), PA
Manufactured from high impact-resistant, UV-stabilised engineering plastic, extremely resistant to weathering.
Good chemical resistance to benzine, diesel oil, fuel oil and alkalis. Not suitable for use with acids.
Tehnični podatki in specifikacije
Max. delovni tlak pri 20 ° C [bar] | 10 |
Max. delovni tlak pri 60 ° C [bar] | 1 |
Navoj | G 1/2 |
Za cevi [mm] | 4/6 |
L1 [mm] | 43.0 |
a/f [mm] | 27 |
L2 [mm] | 14.0 |
Telo vijačnega priključka | Polyamide (PA) |
Vpenjalni obroč | Polypropylene (PP) |
Narezana matica | Polypropylene (PP) |
