Predfilter»FUTURA«PC zbir.0.3 µmVel.2,G 1/2Avt.
SKU: 100166RIE
EAN: 4047322214759

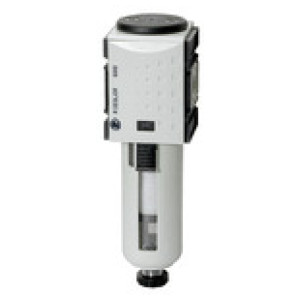

Pre-filter »FUTURA« with PC container and protective cage, 0.3 µm, Size 2, G 1/2, 1.5-16 bar, Temp. -10°C to 50°C, Fully-automatic
Pre-filters in modern design for compliance with strict compressed air purity requirements.
Pre-filters are used to separate solid impurities up to 0.3 µm from compressed air and gases.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 12,03 € x 24 mesecev
- 23,02 € x 12 mesecev
- 45,03 € x 6 mesecev
- 89,06 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Odtok kondenzata | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|
100162RIE | G 1 | Semi-automatic | 4 | 63.0 | 85.0 | 252.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 242,28 € | | |
100164RIE | G 3/8 | Fully-automatic | 1 | 39.5 | 52.0 | 184.5 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 144,50 € | | |
100159RIE | G 3/8 | Semi-automatic | 2 | 47.8 | 63.0 | 194.8 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 191,08 € | | |
100160RIE | G 1/2 | Semi-automatic | 2 | 47.8 | 63.0 | 194.8 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 191,08 € | | |
100165RIE | G 3/8 | Fully-automatic | 2 | 47.8 | 63.0 | 210.8 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 246,31 € | | |
100158RIE | G 3/8 | Semi-automatic | 1 | 39.5 | 52.0 | 169.5 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 101,80 € | | |
100163RIE | G 1/4 | Fully-automatic | 1 | 39.5 | 52.0 | 184.5 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 144,50 € | | |
100167RIE | G 3/4 | Fully-automatic | 4 | 63.0 | 85.0 | 269.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 299,53 € | | |
100166RIE | G 1/2 | Fully-automatic | 2 | 47.8 | 63.0 | 210.8 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 246,31 € | | |
100161RIE | G 3/4 | Semi-automatic | 4 | 63.0 | 85.0 | 252.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 242,28 € | | |
100168RIE | G 1 | Fully-automatic | 4 | 63.0 | 85.0 | 269.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 299,53 € | | |
100157RIE | G 1/4 | Semi-automatic | 1 | 39.5 | 52.0 | 169.5 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 101,80 € | |
Opis
Pre-filter »FUTURA« with PC container and protective cage, 0.3 µm, Size 2, G 1/2, 1.5-16 bar, Temp. -10°C to 50°C, Fully-automatic
Pre-filters in modern design for compliance with strict compressed air purity requirements.
Pre-filters are used to separate solid impurities up to 0.3 µm from compressed air and gases.
Tehnični podatki in specifikacije
Navoj | G 1/2 |
Max. vhodni tlak [bar] | 16 |
Velikost | 2 |
Min. vhodni tlak [bar] | 1.5 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 50 |
Ohišje | PA66 GF60 |
Priključni navoj | Material: Die-cast zinc |
Element filtra | Impregnated paper |
Rang filtra [µm] | 0.3 |
Pretok [l/min] | 500 |
Posoda | Polycarbonate container with protective cage |

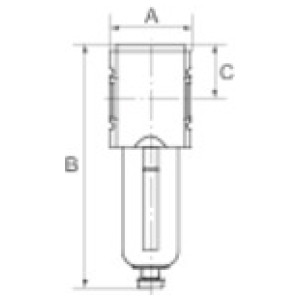

A [mm] | 63.0 |
B [mm] | 210.8 |
C [mm] | 47.8 |
Serija | FUTURA |
Srednje | Compressed air, neutral gases |
Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 0.02 bar |
Odtok kondenzata | Fully-automatic |
