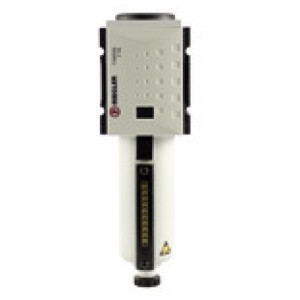

Predfilter»FUTURA«Kov. pos.0.3 µm, Vel.4, G 3/4, Pol avto.
SKU: 156564RIE
EAN: 4047322627566
Pre-filter »FUTURA« with metal container and viewing tube, 0.3 µm, Size 4, G 3/4, 1.5-16 bar, Temp. -10°C to 50°C, Semi-automatic
Pre-filters in modern design for compliance with strict compressed air purity requirements.
Pre-filters are used to separate solid impurities up to 0.3 µm from compressed air and gases.
Obrestno financiranje
- 10,07 € x 36 mesecev
- 14,47 € x 24 mesecev
- 27,70 € x 12 mesecev
- 54,18 € x 6 mesecev
- 107,16 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 156566RIE | G 1/4 | Fully-automatic | 1 | 39.5 | 52.0 | 186.5 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 175,53 € |  | |
| 156562RIE | G 1/4 | Semi-automatic | 1 | 39.5 | 52.0 | 169.5 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 134,58 € | | |
| 139509RIE | G 1/2 | Semi-automatic | 2 | 47.8 | 63.0 | 198.8 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 236,79 € | | |
| 156565RIE | G 1 | Semi-automatic | 4 | 63.0 | 85.0 | 252.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 295,67 € | | |
| 156570RIE | G 3/4 | Fully-automatic | 4 | 63.0 | 85.0 | 269.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 365,24 € | | |
| 156567RIE | G 3/8 | Fully-automatic | 1 | 39.5 | 52.0 | 186.5 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 175,53 € | | |
| 156571RIE | G 1 | Fully-automatic | 4 | 63.0 | 85.0 | 269.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 365,24 € | | |
| 139508RIE | G 3/8 | Semi-automatic | 2 | 47.8 | 63.0 | 198.8 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 236,79 € | | |
| 156564RIE | G 3/4 | Semi-automatic | 4 | 63.0 | 85.0 | 252.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 295,67 € | | |
| 156569RIE | G 1/2 | Fully-automatic | 2 | 47.8 | 63.0 | 214.8 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 301,28 € | | |
| 156563RIE | G 3/8 | Semi-automatic | 1 | 39.5 | 52.0 | 169.5 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 134,58 € | | |
| 156568RIE | G 3/8 | Fully-automatic | 2 | 47.8 | 63.0 | 214.8 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 301,28 € | |
Opis
Pre-filter »FUTURA« with metal container and viewing tube, 0.3 µm, Size 4, G 3/4, 1.5-16 bar, Temp. -10°C to 50°C, Semi-automatic
Pre-filters in modern design for compliance with strict compressed air purity requirements.
Pre-filters are used to separate solid impurities up to 0.3 µm from compressed air and gases.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Element filtra | Impregnated paper |
| Rang filtra [µm] | 0.3 |
| Pretok [l/min] | 1500 |
| Posoda | Metal container with viewing tube |

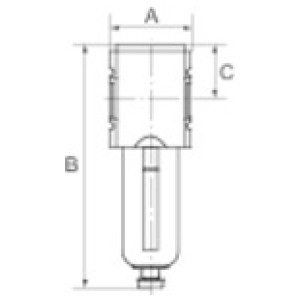

| A [mm] | 85.0 |
| B [mm] | 252.0 |
| C [mm] | 63.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 0.02 bar |
| Odtok kondenzata | Semi-automatic |
