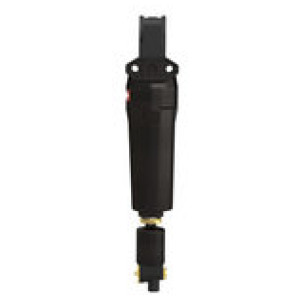

Pre-filter with differential pressure gauge, 1 µm, G 1/2 slika

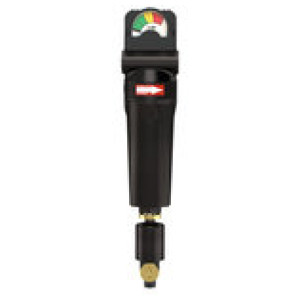

Pre-filter with differential pressure gauge, 1 µm, G 1/2 slika

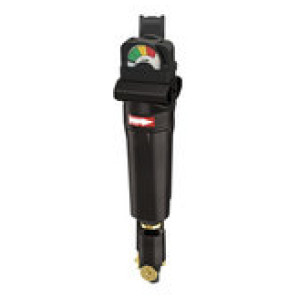

Pre-filter with differential pressure gauge, 1 µm, G 1/2 slika

* slike so simbolične

Pre-filter with differential pressure gauge, 1 µm, G 1/2

SKU: 199805RIE
EAN: 4047322715478

Pre-filter with differential pressure gauge, 1 µm, G 1/2, Input pressure 4 - 12 bar, Medium / ambient temperature 1.5 °C to 80 °C

For filtering out solid impurities larger than 3 µm and for moisture separation.

For connection upstream of a micro-filter or a combination micro-filter/activated carbon filter.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj C [mm] A [mm] D [mm] Pretok [l/min] Zaloga Cena Nakup Natisni
199803RIE G 3/8 23.5 80.0 327.0 1000
Ni na zalogi
 ? Povpraševanje Natisni
199801RIE G 1/4 23.5 80.0 327.0 583
Ni na zalogi
 ? Povpraševanje Natisni
199805RIE G 1/2 28.0 104.0 399.0 1500
Ni na zalogi
 ? Povpraševanje Natisni
199807RIE G 3/4 28.0 104.0 399.0 3666
Ni na zalogi
 ? Povpraševanje Natisni

Opis

Pre-filter with differential pressure gauge, 1 µm, G 1/2, Input pressure 4 - 12 bar, Medium / ambient temperature 1.5 °C to 80 °C

For filtering out solid impurities larger than 3 µm and for moisture separation.

For connection upstream of a micro-filter or a combination micro-filter/activated carbon filter.

Tehnični podatki in specifikacije

Navoj G 1/2
Max. vhodni tlak [bar] 12
Min. vhodni tlak [bar] 4
Ohišje Aluminium
Element filtra Borosilicate microfibreglass fabric
Rang filtra [µm] 1
Posoda filtra Aluminium
Min. temperatura medija [°C] 1.5
Max. temperatura medija [°C] 80
Min. sobna temperatura [°C] 1.5
Max. sobna temperatura [°C] 80
Pretok [l/min] 1500
Max. označeni razpon diferencialnega manometra [bar] 2
A [mm] 104.0
C [mm] 28.0
D [mm] 399.0
Merjenje pretoka At P1 = 7 bar and pressure drop Δp = 0.1 bar
Učinkovitost [%] 99.99
Ločevanje delcev [µm] 1
Vsebnost olja v ostanku [mg/m³] 0.5
