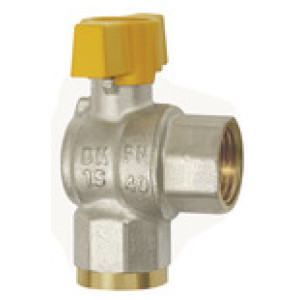

Pravokotni krogelni ventil, nikljana medenina, IT/IT, Rp 1/2
SKU: 103310RIE
EAN: 4047322075497
Rectangular ball valve, nickel-plated brass, IT/IT, Operating temp. -15 °C to 100 °C/60 °C gas, Rp 1/2, PN max. 40 bar/ 5 bar gas
Čas dobave: Predvidoma 3 - 5 dni
30,82 €

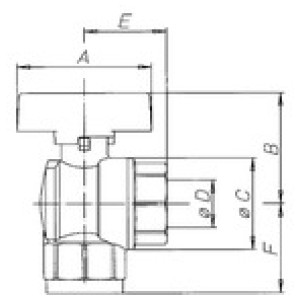

| Šifra | Navoj | DN | E [mm] | F [mm] | C Ø [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103312RIE | Rp 1 | 25 | 42.0 | 46.0 | 48.0 | 50.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 64,10 € |  | |
| 103311RIE | Rp 3/4 | 20 | 35.0 | 38.0 | 39.0 | 46.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 46,62 € | | |
| 103310RIE | Rp 1/2 | 15 | 31.0 | 33.0 | 31.0 | 38.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 30,82 € | |
Opis
Rectangular ball valve, nickel-plated brass, IT/IT, Operating temp. -15 °C to 100 °C/60 °C gas, Rp 1/2, PN max. 40 bar/ 5 bar gas
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | NBR |
| Delovni tlak | max. 5 bar (MOP 5) gas, max. 40 bar liquids |
| Delovna temperatura | -15 °C to 60 °C for gas, -15 °C to 100 °C for liquids |
| DVGW odobritev | DIN EN 331:2013-05 |
| Material navojev | Brass with a bare metal surface |
| Ročica - metuljček | Aluminium, painted yellow |
| Notranji deli | Nickel-plated brass |
| Aplikacije | Gas, compressed air, water, oil |
| Navoj | Rp 1/2 |
| DN | 15 |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| A [mm] | 47.0 |
| B [mm] | 38.0 |
| F [mm] | 33.0 |
| E [mm] | 31.0 |
| C Ø [mm] | 31.0 |
