* slike so simbolične

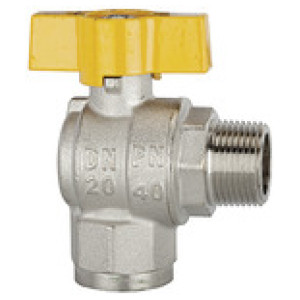

Pravokotni krogelni ventil, nikljana medenina, IT/ET, R/Rp 1
SKU: 103315RIE
EAN: 4047322075893
Rectangular ball valve, nickel-plated brass, IT/ET, Operating temp. -15 °C to 100 °C/60 °C gas, R/Rp 1, PN max. 40 bar/ 5 bar gas
Obrestno financiranje
- 11,71 € x 6 mesecev
- 23,17 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

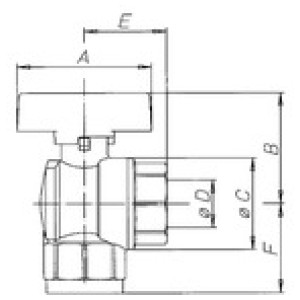

Šifra | Navoj | DN | F [mm] | C Ø [mm] | E [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|
103314RIE | R/Rp 3/4 | 20 | 38.0 | 38.9 | 43.0 | 46.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 46,62 € | ||
103313RIE | R/Rp 1/2 | 15 | 33.0 | 31.0 | 37.0 | 37.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 30,82 € | ||
103315RIE | R/Rp 1 | 25 | 46.0 | 48.0 | 51.0 | 50.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 64,10 € |
Opis
Rectangular ball valve, nickel-plated brass, IT/ET, Operating temp. -15 °C to 100 °C/60 °C gas, R/Rp 1, PN max. 40 bar/ 5 bar gas
Tehnični podatki in specifikacije
Ohišje | Nickel-plated brass |
Krogelno tesnilo | PTFE |
Stebelno tesnilo | NBR |
Delovni tlak | max. 5 bar (MOP 5) gas, max. 40 bar liquids |
Delovna temperatura | -15 °C to 60 °C for gas, -15 °C to 100 °C for liquids |
DVGW odobritev | DIN EN 331:2013-05 |
Material navojev | Brass with a bare metal surface |
Ročica - metuljček | Aluminium, painted yellow |
Notranji deli | Nickel-plated brass |
Aplikacije | Gas, compressed air, water, oil |
Navoj | R/Rp 1 |
DN | 25 |
Standardni navoj | R or RP thread acc. to ISO 7-1 |
A [mm] | 56.0 |
B [mm] | 50.0 |
F [mm] | 46.0 |
E [mm] | 51.0 |
C Ø [mm] | 48.0 |
