* slike so simbolične
Polnilna enota»FUTURA«Elektr. vodena115 V AC, Vel.1, G 3/8
SKU: 156627RIE
EAN: 4047322628181

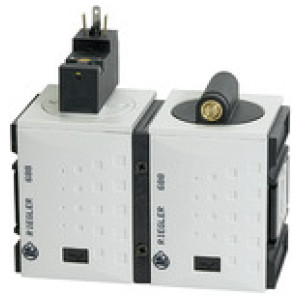

Filling unit »FUTURA«, electr. actuated with solenoid 115 V AC, 50 Hz, Size 1, G 3/8, Exhaust G 1/4, Input pressure 2.5 - 10 bar
The filling unit protects devices connected downstream by ensuring a gradual build-up of pressure.

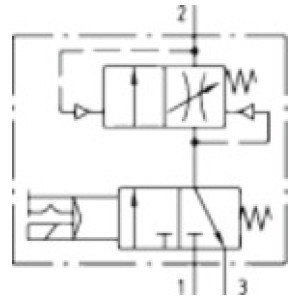

The unit consists of a 3/2-way valve including silencer and a filling valve (start-up valve).
It is connected and disconnected by means of the 3/2-way valve.
The filling time can be altered by turning the adjusting screw.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 17,69 € x 12 mesecev
- 34,60 € x 6 mesecev
- 68,43 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Izpušni zrak | Navoj | Velikost | D [mm] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
156631RIE | G 1/2 | G 1 | 4 | 67.0 | 110.7 | 170.0 | 177.7 | 9000 | Čas dobave: Predvidoma 3 - 5 dni | 497,11 € | | |
156629RIE | G 1/2 | G 1/2 | 2 | 56.5 | 93.8 | 126.0 | 150.3 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | 216,14 € | | |
156628RIE | G 1/2 | G 3/8 | 2 | 56.5 | 93.8 | 126.0 | 150.3 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | 216,14 € | | |
156630RIE | G 1/2 | G 3/4 | 4 | 67.0 | 110.7 | 170.0 | 177.7 | 9000 | Čas dobave: Predvidoma 3 - 5 dni | 497,11 € | | |
156626RIE | G 1/4 | G 1/4 | 1 | 33.0 | 84.8 | 104.0 | 117.8 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 188,90 € | | |
156627RIE | G 1/4 | G 3/8 | 1 | 33.0 | 84.8 | 104.0 | 117.8 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 188,90 € | |
Opis
Filling unit »FUTURA«, electr. actuated with solenoid 115 V AC, 50 Hz, Size 1, G 3/8, Exhaust G 1/4, Input pressure 2.5 - 10 bar
The filling unit protects devices connected downstream by ensuring a gradual build-up of pressure.
The unit consists of a 3/2-way valve including silencer and a filling valve (start-up valve).
It is connected and disconnected by means of the 3/2-way valve.
The filling time can be altered by turning the adjusting screw.
Tehnični podatki in specifikacije
Navoj | G 3/8 |
Max. vhodni tlak [bar] | 10 |
Velikost | 1 |
Min. vhodni tlak [bar] | 2.5 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 50 |
Ohišje | PA66 GF60 |
Priključni navoj | Material: Die-cast zinc |
Vhodna moč | 2.5 Watt with DC voltage |
Dvižna moč pri 50 Hz AC napetosti [VA] | 2.2 |
Zaklepna moč pri 50 Hz AC napetosti [VA] | 1.6 |
Pretok [l/min] | 1400 |
Izpušni zrak | G 1/4 |

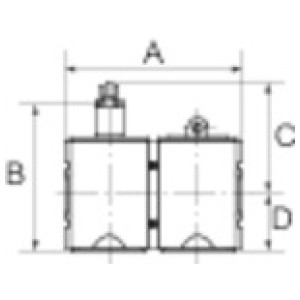

A [mm] | 104.0 |
B [mm] | 117.8 |
C [mm] | 84.8 |
D [mm] | 33.0 |
Serija | FUTURA |
Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
Srednje | Compressed air, neutral gases |
Delovni cikel [%] | 100 |
IP zaščita | IP 65 |
Električni priključek | Socket coupling EN 175301-803, form C, poles 2+PE |
