Pnevmatski izpustni kontrolni ventil -z navojem, G 3/8 8

SKU: 106830RIE
EAN: 9065812

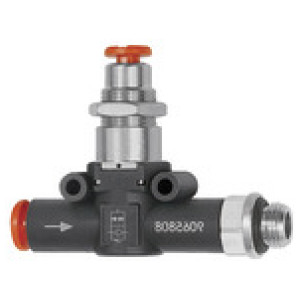

Pneumatically releasable check valve »lineonline«, Hose - thread, G 3/8, for hose Ø 8 mm, Operating pressure max. 10 bar

For stopping and positioning the cylinder. If a signal is present at the pilot port, air can flow to and from the cylinder. If no pilot signal is present, the cylinder exhaust port is shut off by the stop valve. The cylinder is stopped.

Čas dobave: Predvidoma 3 - 5 dni
39,28 €
Primerjaj z ostalimi

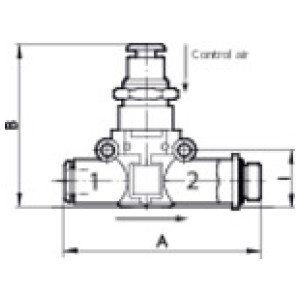

Šifra Navoj Za cevi Ø [mm] I [mm] B [mm] A [mm] Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] Zaloga Cena Nakup Natisni
106829RIE G 1/4 8 18.7 49.7 70.6 790
Čas dobave: Predvidoma 3 - 5 dni
37,89 € Natisni
106828RIE G 1/4 6 14.6 43.2 61.5 400
Čas dobave: Predvidoma 3 - 5 dni
36,97 € Natisni
106826RIE G 1/8 6 14.6 43.2 58.5 400
Čas dobave: Predvidoma 3 - 5 dni
36,34 € Natisni
106827RIE G 1/8 8 18.7 49.7 66.2 790
Čas dobave: Predvidoma 3 - 5 dni
37,21 € Natisni
106830RIE G 3/8 8 18.7 49.7 72.2 790
Čas dobave: Predvidoma 3 - 5 dni
39,28 € Natisni

Opis

Pneumatically releasable check valve »lineonline«, Hose - thread, G 3/8, for hose Ø 8 mm, Operating pressure max. 10 bar

For stopping and positioning the cylinder. If a signal is present at the pilot port, air can flow to and from the cylinder. If no pilot signal is present, the cylinder exhaust port is shut off by the stop valve. The cylinder is stopped.

Tehnični podatki in specifikacije

Min. temperaturno območje [°C] -20
Max. obratovalni tlak [bar] 10
Max. temperaturno območje [°C] 60
Tesnilo NBR
Telo Technopolymer
Notranji deli Nickel-plated brass, brass, technopolymer, stainless steel

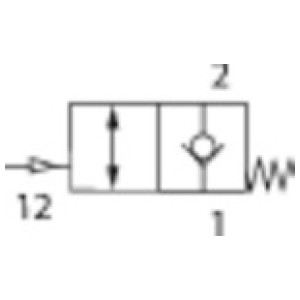

Pnevmatski simboli On housing
Nadzor zraka 4 mm
Navoj G 3/8
Za cevi Ø [mm] 8
A [mm] 72.2
B [mm] 49.7
I [mm] 18.7
Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] 790
