* slike so simbolične

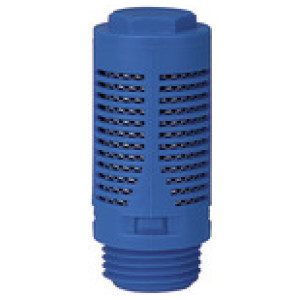

Plastičen Glušnik, jeklena mrežica v bombažnem polnjenju, G 3/4
SKU: 113386RIE
EAN: 4047322273572
Plastic silencer, Steel net and cotton strip filling, G 3/4, Operating pressure max. 12 bar, Operating temperature -20 °C to 70 °C
"Impurities are retained due to the steel mesh and cotton cloth filling
Čas dobave: Predvidoma 3 - 5 dni
20,58 €

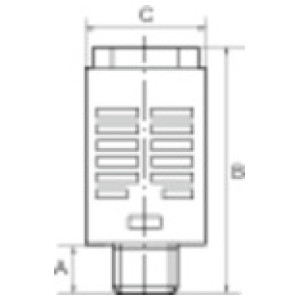

| Šifra | Navoj | Raven hrupa pri 6 bar [dB] | A [mm] | a/f [mm] | C [mm] | Raven hrupa pri 4 bar [dB] | B [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 113386RIE | G 3/4 | - | 17.5 | 25 | 48.0 | 88 | 112.0 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,58 € |  | |
| 113384RIE | G 3/8 | 92 | 10.5 | 16 | 24.5 | 87 | 58.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,09 € | | |
| 113387RIE | G 1 | - | 16.0 | 25 | 48.0 | 88 | 110.5 | 110.5 | Čas dobave: Predvidoma 3 - 5 dni | 20,58 € | | |
| 113382RIE | G 1/8 | 87 | 6.0 | 10 | 15.5 | 85 | 34.0 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,17 € | | |
| 113385RIE | G 1/2 | 92 | 10.5 | 16 | 24.5 | 87 | 58.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,09 € | | |
| 113383RIE | G 1/4 | 90 | 8.0 | 12 | 19.5 | 86 | 43.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,70 € | |
Opis
Plastic silencer, Steel net and cotton strip filling, G 3/4, Operating pressure max. 12 bar, Operating temperature -20 °C to 70 °C
"Impurities are retained due to the steel mesh and cotton cloth filling
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 12 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Raven hrupa pri 6 bar [dB] | - |
| Raven hrupa pri 4 bar [dB] | 88 |
| Navoj | G 3/4 |
| a/f [mm] | 25 |
| A [mm] | 17.5 |
| B [mm] | 112.0 |
| C [mm] | 48.0 |
| L [mm] | 112.0 |
