* slike so simbolične

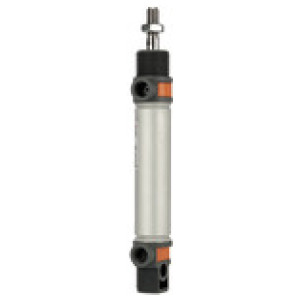

Okrogli cilinder TP delujoč v dveh smerehbat Ø 25hod 500G 1/8
SKU: 105729RIE
EAN: 1123250500CP
Round cylinder TP (ISO 6432) double-acting, Piston Ø 25, Stroke 500, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 60 °C
Inexpensive standard version with aluminum pipe and magnet piston.
Suitable for filtered (50 µm), unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Čas dobave: Predvidoma 3 - 5 dni
70,93 €
ali od 13,00 € / mesec
Izračunaj obrok
Obrestno financiranje
- 13,00 € x 6 mesecev
- 25,71 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Batnica | ET batnice | Povezava | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 105703RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 42,71 € |  | |
| 105720RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 47,30 € | | |
| 105712RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 45,05 € | | |
| 105719RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 63,95 € | | |
| 105704RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 43,82 € | | |
| 105711RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 44,12 € | | |
| 105708RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 48,41 € | | |
| 105724RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 51,57 € | | |
| 105713RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 46,51 € | | |
| 105706RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 45,88 € | | |
| 105716RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 49,84 € | | |
| 105721RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 47,93 € | | |
| 105702RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 41,88 € | | |
| 105728RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 58,89 € | | |
| 105727RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 56,34 € | | |
| 105707RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 47,14 € | | |
| 105725RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 52,69 € | | |
| 105715RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 48,25 € | | |
| 105726RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 54,44 € | | |
| 105710RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 43,48 € | | |
| 105729RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 70,93 € | | |
| 105723RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 50,64 € | | |
| 105722RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 49,04 € | | |
| 105718RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 53,63 € | | |
| 105717RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 51,42 € | | |
| 105714RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 47,30 € | | |
| 105709RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 50,30 € | | |
| 105705RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 44,90 € | |
Opis
Round cylinder TP (ISO 6432) double-acting, Piston Ø 25, Stroke 500, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 60 °C
Inexpensive standard version with aluminum pipe and magnet piston.
Suitable for filtered (50 µm), unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Tehnični podatki in specifikacije
| Min. nastavljeni tlak [bar] | 0.6 |
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Serija | TP series |
| Standard | acc. to ISO 6432 |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | male piston rod |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 60 |
| Ovoj | Aluminium alloy, anodised |
| Tesnilo batnice | PU |
| Oblika | Connection: Aluminium pipe / end caps flanged |
| Glava | Technopolymer |
| Dno | Technopolymer |
| Puša | Technopolymer |
| Bat Ø [mm] | 25 |
| Stroke [mm] | 500 |
| Povezava | G 1/8 |
| Batnica | C45 steel, hard chrome-plated |
| ET batnice | M10x1.25 |
