Okrogli cilinder TP delujoč v dveh smerehbat Ø 25hod 125G 1/8
SKU: 105725RIE
EAN: 1123250125CP

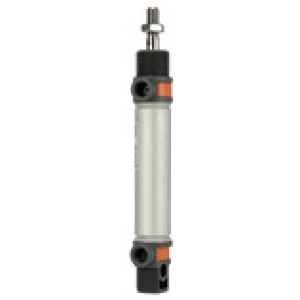

Round cylinder TP (ISO 6432) double-acting, Piston Ø 25, Stroke 125, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 60 °C
Inexpensive standard version with aluminum pipe and magnet piston.
Suitable for filtered (50 µm), unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Čas dobave: Predvidoma 3 - 5 dni
52,69 €
ali od 19,19 € / mesec
Izračunaj obrok
Obrestno financiranje
- 19,19 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Batnica | ET batnice | Povezava | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 105703RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 42,71 € |  | |
| 105720RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 47,30 € | | |
| 105712RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 45,05 € | | |
| 105719RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 63,95 € | | |
| 105704RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 43,82 € | | |
| 105711RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 44,12 € | | |
| 105708RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 48,41 € | | |
| 105724RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 51,57 € | | |
| 105713RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 46,51 € | | |
| 105706RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 45,88 € | | |
| 105716RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 49,84 € | | |
| 105721RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 47,93 € | | |
| 105702RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 41,88 € | | |
| 105728RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 58,89 € | | |
| 105727RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 56,34 € | | |
| 105707RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 47,14 € | | |
| 105725RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 52,69 € | | |
| 105715RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 48,25 € | | |
| 105726RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 54,44 € | | |
| 105710RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 43,48 € | | |
| 105729RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 70,93 € | | |
| 105723RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 50,64 € | | |
| 105722RIE | C45 steel, hard chrome-plated | M10x1.25 | G 1/8 | 25 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 49,04 € | | |
| 105718RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 53,63 € | | |
| 105717RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 51,42 € | | |
| 105714RIE | C45 steel, hard chrome-plated | M8 | G 1/8 | 20 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 47,30 € | | |
| 105709RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 50,30 € | | |
| 105705RIE | Stainless steel 1.4301 | M6 | M5 | 16 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 44,90 € | |
Opis
Round cylinder TP (ISO 6432) double-acting, Piston Ø 25, Stroke 125, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 60 °C
Inexpensive standard version with aluminum pipe and magnet piston.
Suitable for filtered (50 µm), unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Tehnični podatki in specifikacije
| Min. nastavljeni tlak [bar] | 0.6 |
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Serija | TP series |
| Standard | acc. to ISO 6432 |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | male piston rod |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 60 |
| Ovoj | Aluminium alloy, anodised |
| Tesnilo batnice | PU |
| Oblika | Connection: Aluminium pipe / end caps flanged |
| Glava | Technopolymer |
| Dno | Technopolymer |
| Puša | Technopolymer |
| Bat Ø [mm] | 25 |
| Stroke [mm] | 125 |
| Povezava | G 1/8 |
| Batnica | C45 steel, hard chrome-plated |
| ET batnice | M10x1.25 |
