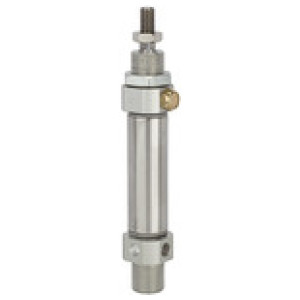

Okrogli cilinder »MSI« enosmerni, bat Ø 40, hod 30, G 1/4
SKU: 115002RIE
EAN: 4047322317252
Round cylinder »MSI«, single-acting, Magnet, Piston Ø 40, Stroke 30, G 1/4, Working pressure 2 - 10 bar, Temp. -20 °C to 70 °C
These round cylinders are available in the following versions:
- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432
- »MI« Series, double-acting, Ø 32 to 40
- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
»CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
Obrestno financiranje
- 13,29 € x 12 mesecev
- 25,99 € x 6 mesecev
- 51,41 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | ET batnice | Povezava | Stroke [mm] | Batnica Ø [mm] | Bat Ø [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 114999RIE | M12x1.25 | G 1/4 | 15 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € |  | |
| 115008RIE | M12x1.25 | G 1/4 | 100 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 156,72 € | | |
| 114995RIE | M10x1.25 | G 1/8 | 100 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 124,34 € | | |
| 115006RIE | M12x1.25 | G 1/4 | 75 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 148,95 € | | |
| 115009RIE | M12x1.25 | G 1/4 | 125 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 160,93 € | | |
| 115001RIE | M12x1.25 | G 1/4 | 25 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 133,87 € | | |
| 114992RIE | M10x1.25 | G 1/8 | 60 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 117,53 € | | |
| 115005RIE | M12x1.25 | G 1/4 | 60 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 148,95 € | | |
| 114989RIE | M10x1.25 | G 1/8 | 30 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 114,63 € | | |
| 115004RIE | M12x1.25 | G 1/4 | 50 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 141,50 € | | |
| 114993RIE | M10x1.25 | G 1/8 | 75 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 118,50 € | | |
| 114996RIE | M10x1.25 | G 1/8 | 125 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 128,22 € | | |
| 115010RIE | M12x1.25 | G 1/4 | 150 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 168,70 € | | |
| 114998RIE | M12x1.25 | G 1/4 | 10 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 114991RIE | M10x1.25 | G 1/8 | 50 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 116,56 € | | |
| 114985RIE | M10x1.25 | G 1/8 | 10 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 111,87 € | | |
| 115007RIE | M12x1.25 | G 1/4 | 80 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 156,72 € | | |
| 115002RIE | M12x1.25 | G 1/4 | 30 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 141,50 € | | |
| 114988RIE | M10x1.25 | G 1/8 | 25 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 113,66 € | | |
| 115003RIE | M12x1.25 | G 1/4 | 40 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 141,50 € | | |
| 114997RIE | M10x1.25 | G 1/8 | 150 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 131,78 € | | |
| 114994RIE | M10x1.25 | G 1/8 | 80 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 119,80 € | | |
| 114987RIE | M10x1.25 | G 1/8 | 20 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 111,87 € | | |
| 115000RIE | M12x1.25 | G 1/4 | 20 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 114990RIE | M10x1.25 | G 1/8 | 40 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 115,61 € | | |
| 114986RIE | M10x1.25 | G 1/8 | 15 | 12 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 111,87 € | |
Opis
Round cylinder »MSI«, single-acting, Magnet, Piston Ø 40, Stroke 30, G 1/4, Working pressure 2 - 10 bar, Temp. -20 °C to 70 °C
These round cylinders are available in the following versions:
- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432
- »MI« Series, double-acting, Ø 32 to 40
- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
»CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | single-acting |
| Serija | MSI series |
| Vrsta | CM type |
| Starting position | pressureless in the retracted position |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | male piston rod |
| Min. delovni tlak [bar] | 2 |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Stainless steel 1.4301 |
| Bat Ø [mm] | 40 |
| Stroke [mm] | 30 |
| Povezava | G 1/4 |
| Batnica | Stainless steel 1.4301 |
| ET batnice | M12x1.25 |
| Batnica Ø [mm] | 16 |
| Bat | Aluminium |
