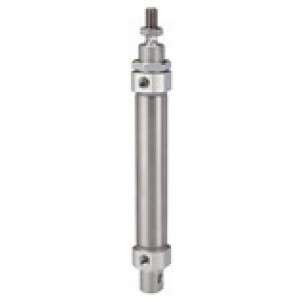

Okrogli cilinder »MI« delujoč v dveh smerehbat Ø 25hod 10G 1/8
SKU: 114858RIE
EAN: 4047322314503
Round cylinder »MI« ISO 6432, double-acting, Piston Ø 25, Stroke 10, G 1/8, Working pressure 1 - 10 bar, Temp. -20 °C to 70 °C
These round cylinders are available in the following versions:
- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432
- »MI« Series, double-acting, Ø 32 to 40
- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
»CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
Čas dobave: Predvidoma 3 - 5 dni
63,79 €
ali od 11,71 € / mesec
Izračunaj obrok
Obrestno financiranje
- 11,71 € x 6 mesecev
- 23,17 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Bat | ET batnice | Povezava | Batnica Ø [mm] | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 114784RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 44,51 € |  | |
| 114840RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 56,69 € | | |
| 114815RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 61,21 € | | |
| 114828RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 57,47 € | | |
| 114822RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 51,81 € | | |
| 114809RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 53,75 € | | |
| 114838RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 55,68 € | | |
| 114821RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 51,81 € | | |
| 114789RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 46,46 € | | |
| 114783RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 150 | Čas dobave: Predvidoma 3 - 5 dni | 51,47 € | | |
| 114830RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 60,40 € | | |
| 114861RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 61,84 € | | |
| 114807RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 60 | Čas dobave: Predvidoma 3 - 5 dni | 53,25 € | | |
| 114833RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 66,70 € | | |
| 114774RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 44,03 € | | |
| 114806RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 52,30 € | | |
| 114839RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 56,69 € | | |
| 114801RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 15 | Čas dobave: Predvidoma 3 - 5 dni | 51,01 € | | |
| 114870RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 150 | Čas dobave: Predvidoma 3 - 5 dni | 74,81 € | | |
| 114804RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 51,81 € | | |
| 114859RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 15 | Čas dobave: Predvidoma 3 - 5 dni | 63,79 € | | |
| 114805RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 51,81 € | | |
| 114880RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 114,46 € | | |
| 114864RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 64,60 € | | |
| 114868RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 69,13 € | | |
| 114779RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 75 | Čas dobave: Predvidoma 3 - 5 dni | 44,99 € | | |
| 114871RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 82,87 € | | |
| 114808RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 75 | Čas dobave: Predvidoma 3 - 5 dni | 53,25 € | | |
| 114852RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 91,32 € | | |
| 114850RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 73,18 € | | |
| 114818RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 15 | Čas dobave: Predvidoma 3 - 5 dni | 49,86 € | | |
| 114796RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 150 | Čas dobave: Predvidoma 3 - 5 dni | 48,57 € | | |
| 114816RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 62,15 € | | |
| 114853RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 350 | Čas dobave: Predvidoma 3 - 5 dni | 98,61 € | | |
| 114842RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 60 | Čas dobave: Predvidoma 3 - 5 dni | 58,61 € | | |
| 114787RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 45,51 € | | |
| 114845RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 61,21 € | | |
| 114851RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 85,29 € | | |
| 114798RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 175 | Čas dobave: Predvidoma 3 - 5 dni | 49,86 € | | |
| 114793RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 47,12 € | | |
| 114841RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 57,47 € | | |
| 114847RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 150 | Čas dobave: Predvidoma 3 - 5 dni | 67,17 € | | |
| 114817RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 49,86 € | | |
| 114800RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 50,67 € | | |
| 114867RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 73,18 € | | |
| 114814RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 175 | Čas dobave: Predvidoma 3 - 5 dni | 60,21 € | | |
| 114874RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 97,77 € | | |
| 114855RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 450 | Čas dobave: Predvidoma 3 - 5 dni | 111,22 € | | |
| 114863RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 67,03 € | | |
| 114777RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 44,51 € | | |
| 114873RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 81,59 € | | |
| 114786RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 44,51 € | | |
| 114826RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 54,72 € | | |
| 114795RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 48,08 € | | |
| 114854RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 104,58 € | | |
| 114829RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 150 | Čas dobave: Predvidoma 3 - 5 dni | 58,43 € | | |
| 114831RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 175 | Čas dobave: Predvidoma 3 - 5 dni | 61,35 € | | |
| 114835RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 54,89 € | | |
| 114837RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 55,39 € | | |
| 114772RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 15 | Čas dobave: Predvidoma 3 - 5 dni | 43,40 € | | |
| 114788RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 46,46 € | | |
| 114820RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 50,67 € | | |
| 114792RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 75 | Čas dobave: Predvidoma 3 - 5 dni | 47,12 € | | |
| 114794RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 48,08 € | | |
| 114813RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 59,57 € | | |
| 114811RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 56,34 € | | |
| 114785RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 15 | Čas dobave: Predvidoma 3 - 5 dni | 44,51 € | | |
| 114810RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 54,89 € | | |
| 114780RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 45,51 € | | |
| 114877RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 110,10 € | | |
| 114819RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 50,19 € | | |
| 114876RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 350 | Čas dobave: Predvidoma 3 - 5 dni | 102,66 € | | |
| 114856RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 118,50 € | | |
| 114832RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 62,50 € | | |
| 114782RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 48,90 € | | |
| 114827RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 55,68 € | | |
| 114872RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 175 | Čas dobave: Predvidoma 3 - 5 dni | 78,06 € | | |
| 114857RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 127,59 € | | |
| 114812RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 150 | Čas dobave: Predvidoma 3 - 5 dni | 56,83 € | | |
| 114771RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 43,40 € | | |
| 114824RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 60 | Čas dobave: Predvidoma 3 - 5 dni | 53,75 € | | |
| 114802RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 51,01 € | | |
| 114878RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 450 | Čas dobave: Predvidoma 3 - 5 dni | 117,86 € | | |
| 114775RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 44,03 € | | |
| 114866RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 75 | Čas dobave: Predvidoma 3 - 5 dni | 65,40 € | | |
| 114860RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 63,79 € | | |
| 114776RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 44,03 € | | |
| 114875RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 95,54 € | | |
| 114790RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 47,12 € | | |
| 114791RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 60 | Čas dobave: Predvidoma 3 - 5 dni | 47,12 € | | |
| 114858RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 63,79 € | | |
| 114799RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 49,86 € | | |
| 114879RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 125,65 € | | |
| 114843RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 75 | Čas dobave: Predvidoma 3 - 5 dni | 102,32 € | | |
| 114823RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 53,25 € | | |
| 114862RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 63,79 € | | |
| 114773RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 43,40 € | | |
| 114869RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 71,24 € | | |
| 114825RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 75 | Čas dobave: Predvidoma 3 - 5 dni | 53,75 € | | |
| 114803RIE | Stainless steel 1.4305 | M6x1.0 | M5x0.8 | 6 | 12 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 51,47 € | | |
| 114836RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 15 | Čas dobave: Predvidoma 3 - 5 dni | 55,39 € | | |
| 114865RIE | Aluminium | M10x1.25 | G 1/8 | 10 | 25 | 60 | Čas dobave: Predvidoma 3 - 5 dni | 70,26 € | | |
| 114834RIE | Aluminium | M6x1.0 | M5x0.8 | 6 | 16 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 75,77 € | | |
| 114778RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 60 | Čas dobave: Predvidoma 3 - 5 dni | 44,99 € | | |
| 114797RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 48,57 € | | |
| 114846RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 125 | Čas dobave: Predvidoma 3 - 5 dni | 66,22 € | | |
| 114781RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 46,46 € | | |
| 114849RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 175 | Čas dobave: Predvidoma 3 - 5 dni | 72,04 € | | |
| 114848RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 70,75 € | | |
| 114844RIE | Aluminium | M8x1.25 | G 1/8 | 8 | 20 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 64,28 € | |
Opis
Round cylinder »MI« ISO 6432, double-acting, Piston Ø 25, Stroke 10, G 1/8, Working pressure 1 - 10 bar, Temp. -20 °C to 70 °C
These round cylinders are available in the following versions:
- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432
- »MI« Series, double-acting, Ø 32 to 40
- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
»CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Serija | MI series |
| Vrsta | CA type |
| Standard | acc. to ISO 6432 |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | male piston rod |
| Min. delovni tlak [bar] | 1 |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Stainless steel 1.4301 |
| Bat Ø [mm] | 25 |
| Stroke [mm] | 10 |
| Povezava | G 1/8 |
| Batnica | Stainless steel 1.4301 |
| ET batnice | M10x1.25 |
| Batnica Ø [mm] | 10 |
| Bat | Aluminium |
