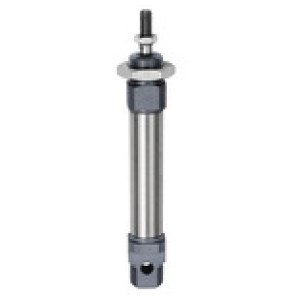

Okrogli cilinder, enosmerni, bat Ø 20, hod 50, G 1/8
SKU: 105836RIE
EAN: 1110200050CN
Round cylinder, ISO 6432, single-acting, Magnet, Piston Ø 20, Stroke 50, G 1/8, Working pressure max. 10 bar, Temp. -10°C to 80°C
Single and double-acting cylinders, with magnetic piston.
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Obrestno financiranje
- 12,08 € x 6 mesecev
- 23,89 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj na batnici | Povezava | Min. nastavljeni tlak [bar] | Stroke [mm] | Bat Ø [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 105831RIE | M6 | M5 | 0.6 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 53,34 € |  | |
| 105824RIE | M4 | M5 | 0.8 | 50 | 8 | Čas dobave: Predvidoma 3 - 5 dni | 51,09 € | | |
| 105839RIE | M10x1.25 | G 1/8 | 0.6 | 50 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 74,62 € | | |
| 105823RIE | M4 | M5 | 0.8 | 25 | 8 | Čas dobave: Predvidoma 3 - 5 dni | 50,47 € | | |
| 105822RIE | M4 | M5 | 0.8 | 10 | 8 | Čas dobave: Predvidoma 3 - 5 dni | 50,17 € | | |
| 105829RIE | M6 | M5 | 0.8 | 25 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 55,06 € | | |
| 105836RIE | M8 | G 1/8 | 0.6 | 50 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 66,03 € | | |
| 105830RIE | M6 | M5 | 0.8 | 50 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 56,02 € | | |
| 105828RIE | M6 | M5 | 0.8 | 10 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 54,44 € | | |
| 105833RIE | M6 | M5 | 0.6 | 50 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 57,29 € | | |
| 105832RIE | M6 | M5 | 0.6 | 25 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 54,75 € | | |
| 105837RIE | M10x1.25 | G 1/8 | 0.6 | 10 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 69,82 € | | |
| 105827RIE | M4 | M5 | 0.8 | 50 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 52,69 € | | |
| 105835RIE | M8 | G 1/8 | 0.6 | 25 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 64,12 € | | |
| 105838RIE | M10x1.25 | G 1/8 | 0.6 | 25 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 71,59 € | | |
| 105834RIE | M8 | G 1/8 | 0.6 | 10 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 63,33 € | | |
| 105826RIE | M4 | M5 | 0.8 | 25 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 51,89 € | | |
| 105825RIE | M4 | M5 | 0.8 | 10 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 51,09 € | |
Opis
Round cylinder, ISO 6432, single-acting, Magnet, Piston Ø 20, Stroke 50, G 1/8, Working pressure max. 10 bar, Temp. -10°C to 80°C
Single and double-acting cylinders, with magnetic piston.
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Tehnični podatki in specifikacije
| Min. nastavljeni tlak [bar] | 0.6 |
| Magnet | with magnet |

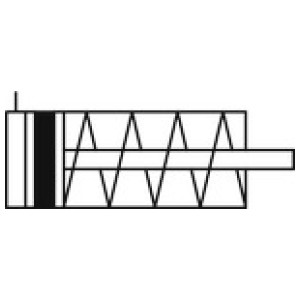

| Ffunkcija | single-acting |
| Starting position | pressureless in the retracted position |
| Standard | acc. to ISO 6432 |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | male piston rod |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 80 |
| Tesnilo | NBR |
| Ovoj | Stainless steel 1.4301 |
| Oblika | Flanged joint between stainless steel barrel and heads |
| Bat Ø [mm] | 20 |
| Stroke [mm] | 50 |
| Povezava | G 1/8 |
| Batnica | C45 steel, hard chrome-plated |
| Navoj na batnici | M8 |
| Bat | Synthetic (acetal) resin |
