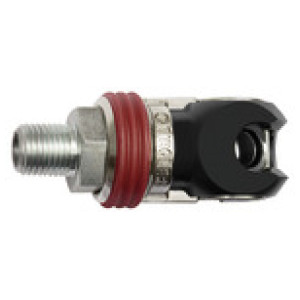

nihajne varn. sklopke I.D. 8, ISO 6150 C, G 1/2 Z.N.
SKU: 141687RIE
EAN: 4047322565462
Swing safety coupling I.D. 8, ISO 6150 C, Steel, G 1/2 ET, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
"Swing safety coupling with free passage.
The plug-in nipple is inserted into the coupling body and rotated by an approx. 90° motion to make the connection. As soon as the ""red ring"" clicks into the intended slot then a secure connection has been made. To release the connection again, the ""red ring"" must be pulled out and the plug-in nipple is swivelled to the stopper into the starting position. Venting is done during uncoupling through a vent hole on the back side of the coupling.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
"| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 141687RIE | G 1/2 ET | 20 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,32 € |  | |
| 141689RIE | NPT 3/8 ET | 20 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,32 € | | |
| 141688RIE | NPT 1/4 ET | 22 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,32 € | | |
| 141685RIE | G 1/4 ET | 20 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,32 € | | |
| 141686RIE | G 3/8 ET | 20 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,32 € | | |
| 141690RIE | NPT 1/2 ET | 20 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,32 € | |
Opis
Swing safety coupling I.D. 8, ISO 6150 C, Steel, G 1/2 ET, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
"Swing safety coupling with free passage.
The plug-in nipple is inserted into the coupling body and rotated by an approx. 90° motion to make the connection. As soon as the ""red ring"" clicks into the intended slot then a secure connection has been made. To release the connection again, the ""red ring"" must be pulled out and the plug-in nipple is swivelled to the stopper into the starting position. Venting is done during uncoupling through a vent hole on the back side of the coupling.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
"Tehnični podatki in specifikacije
| DN | 8 |
| Povezava | G 1/2 ET |
| a/f [mm] | 20 |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Srednje | Compressed air, gases |
| Vtični profil | acc. ISO 6150 C |
| Delovni tlak | max. 25 bar / max. 16 bar when attaching / detaching |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 100 |
| Ohišje | Steel, QPQ treated |
| Tesnilo | NBR |
| Pretok | 2300 l/min (air) |
| Rokav | Die-cast zinc, nickel-plated, red rubber coated |
| Navojni kos | Galvanised steel |
| Dolžina [mm] | 72.0 |
