nihajne varn. sklopke I.D. 5.5, ARO 210, NPT 1/2 Z.N.
SKU: 141606RIE
EAN: 4047322567268

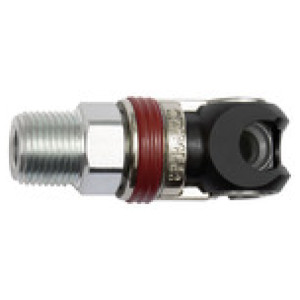

Swing safety coupling I.D. 5.5, ARO 210, Steel, NPT 1/2 ET, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
"Swing safety coupling with free passage.
The plug-in nipple is inserted into the coupling body and rotated by an approx. 90° motion to make the connection. As soon as the ""red ring"" clicks into the intended slot then a secure connection has been made. To release the connection again, the ""red ring"" must be pulled out and the plug-in nipple is swivelled to the stopper into the starting position. Venting is done during uncoupling through a vent hole on the back side of the coupling.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive.
"Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
141606RIE | NPT 1/2 ET | 22 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 36,77 € | | |
141604RIE | NPT 1/4 ET | 19 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 36,77 € | | |
141603RIE | G 1/2 ET | 22 | 61.0 | Čas dobave: Predvidoma 3 - 5 dni | 33,45 € | | |
141601RIE | G 1/4 ET | 19 | 59.0 | Čas dobave: Predvidoma 3 - 5 dni | 33,45 € | | |
141605RIE | NPT 3/8 ET | 20 | 68.0 | Čas dobave: Predvidoma 3 - 5 dni | 36,77 € | | |
141602RIE | G 3/8 ET | 19 | 59.0 | Čas dobave: Predvidoma 3 - 5 dni | 33,45 € | |
Opis
Swing safety coupling I.D. 5.5, ARO 210, Steel, NPT 1/2 ET, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
"Swing safety coupling with free passage.
The plug-in nipple is inserted into the coupling body and rotated by an approx. 90° motion to make the connection. As soon as the ""red ring"" clicks into the intended slot then a secure connection has been made. To release the connection again, the ""red ring"" must be pulled out and the plug-in nipple is swivelled to the stopper into the starting position. Venting is done during uncoupling through a vent hole on the back side of the coupling.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive.
"Tehnični podatki in specifikacije
DN | 5.5 |
Povezava | NPT 1/2 ET |
a/f [mm] | 22 |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
Srednje | Compressed air, gases |
Vtični profil | acc. ARO 210 |
Delovni tlak | max. 25 bar / max. 16 bar when attaching / detaching |
Min. temperaturno območje [°C] | -20 |
Max. temperaturno območje [°C] | 100 |
Ohišje | Steel, QPQ treated |
Tesnilo | NBR |
Pretok | 820 l/min (air) |
Rokav | Die-cast zinc, nickel-plated, red rubber coated |
Navojni kos | Galvanised steel |
Dolžina [mm] | 67.0 |
