* slike so simbolične
Nav. koleno 90°,red. N.N./N.N.Rp11/2, Rp11/4,č. kovanlit. ž.
SKU: 133566RIE
EAN: 4047322482158

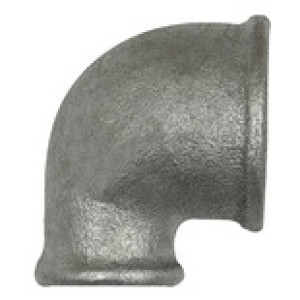

Bracket 90°, red. IT/IT Rp 1 1/2, Rp 1 1/4, Operating temp. -20°C to 300°C, black malleable cast iron, Hot-dip galvanised, ISO 7-1
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
| Šifra | Navoj 1 | Navoj 2 | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 133563RIE | Rp 1 | Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 4,87 € |  | |
| 133562RIE | Rp 1 | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 4,37 € | | |
| 133568RIE | Rp 2 1/2 | Rp 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 20,33 € | | |
| 133567RIE | Rp 2 | Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 18,87 € | | |
| 133561RIE | Rp 3/4 | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 3,01 € | | |
| 133566RIE | Rp 1 1/2 | Rp 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 13,27 € | | |
| 133565RIE | Rp 1 1/2 | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 13,20 € | | |
| 133564RIE | Rp 1 1/4 | Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 7,47 € | | |
| 133560RIE | Rp 1/2 | Rp 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 2,68 € | |
Opis
Bracket 90°, red. IT/IT Rp 1 1/2, Rp 1 1/4, Operating temp. -20°C to 300°C, black malleable cast iron, Hot-dip galvanised, ISO 7-1
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Hot dip galvanised |
| Standardni navoj | acc. ISO 7-1 |
| Navoj 1 | Rp 1 1/2 |
| Navoj 2 | Rp 1 1/4 |
