* slike so simbolične
Nav. koleno 121, 45°N.N./Z.N.Rp/R 1/2,č. kovanlit. ž.
SKU: 112953RIE
EAN: 4047322252546

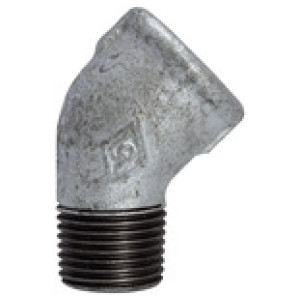

Bracket 121, 45°, IT/ET, Rp/R 1/2, Operating temp. -20 °C to 300 °C, black malleable cast iron, Hot-dip galvanised, DIN EN 10242
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 112955RIE | Rp/R 1 | Čas dobave: Predvidoma 3 - 5 dni | 8,91 € |  | |
| 112957RIE | Rp/R 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 17,17 € | | |
| 112954RIE | Rp/R 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 5,93 € | | |
| 112958RIE | Rp/R 2 | Čas dobave: Predvidoma 3 - 5 dni | 23,08 € | | |
| 112952RIE | Rp/R 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 4,92 € | | |
| 112956RIE | Rp/R 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 15,84 € | | |
| 112953RIE | Rp/R 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 4,29 € | |
Opis
Bracket 121, 45°, IT/ET, Rp/R 1/2, Operating temp. -20 °C to 300 °C, black malleable cast iron, Hot-dip galvanised, DIN EN 10242
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Hot dip galvanised |
| Navoj | Rp/R 1/2 |
| Standardni navoj | acc. ISO 7-1 |
