* slike so simbolične

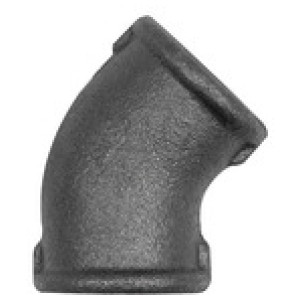

Nav. koleno 120, 45° Rp 11/2 N.N.,Rp11/2 N.N. črn
SKU: 133660RIE
EAN: 4047322480604
Bracket 120, 45°, Rp 1 1/2 IT, Rp 1 1/2 IT, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 133656RIE | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 4,16 € |  | |
| 133658RIE | Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 7,43 € | | |
| 133662RIE | Rp 2 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 45,10 € | | |
| 133657RIE | Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 4,73 € | | |
| 133655RIE | Rp 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 4,97 € | | |
| 133659RIE | Rp 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 14,24 € | | |
| 133661RIE | Rp 2 | Čas dobave: Predvidoma 3 - 5 dni | 21,35 € | | |
| 133660RIE | Rp 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 16,62 € | |
Opis
Bracket 120, 45°, Rp 1 1/2 IT, Rp 1 1/2 IT, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Black |
| Navoj | Rp 1 1/2 |
| Standardni navoj | acc. ISO 7-1 |
