Natančen Tlačni reg.G 3/8Regulacijsko območje 0.05 - 3 bar
SKU: 101236RIE
EAN: 4047322108133

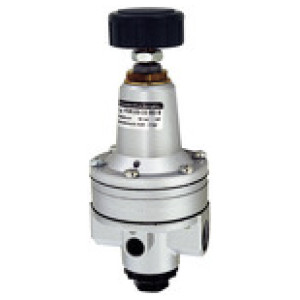

Precision pressure regulator without pressure gauge, G 3/8, Control range 0.05 - 3 bar, Input pressure max. 16 bar
With high flow rate and large secondary venting.
Diaphragm pressure regulators with large secondary venting for applications requiring an extremely accurate working pressure, especially at high flow rates.
Obrestno financiranje
- 12,22 € x 24 mesecev
- 23,39 € x 12 mesecev
- 45,76 € x 6 mesecev
- 90,51 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Max. krmilno območje [bar] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 101236RIE | G 3/8 | 3 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | 250,19 € |  | |
| 101238RIE | G 1/2 | 3 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | 250,19 € | | |
| 101237RIE | G 3/8 | 7 | 5500 | Čas dobave: Predvidoma 3 - 5 dni | 250,19 € | | |
| 101239RIE | G 1/2 | 5 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 250,19 € | | |
| 101234RIE | G 1/4 | 3 | 700 | Čas dobave: Predvidoma 3 - 5 dni | 250,19 € | | |
| 101235RIE | G 1/4 | 7 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 250,19 € | | |
| 101240RIE | G 1/2 | 7 | 5500 | Čas dobave: Predvidoma 3 - 5 dni | 250,19 € | |
Opis
Precision pressure regulator without pressure gauge, G 3/8, Control range 0.05 - 3 bar, Input pressure max. 16 bar
With high flow rate and large secondary venting.
Diaphragm pressure regulators with large secondary venting for applications requiring an extremely accurate working pressure, especially at high flow rates.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 1.5 - 6 l/min, depending on input pressure and control range |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Navoj manometra | G 1/4 |
| Min. krmilno območje [bar] | 0.05 |
| Max. krmilno območje [bar] | 3 |

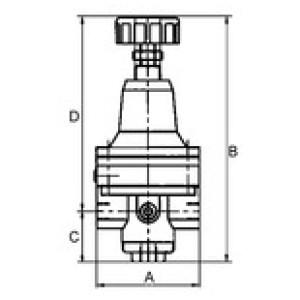

| A [mm] | 82.0 |
| B [mm] | 202.5 |
| C [mm] | 43.5 |
| D [mm] | 159.0 |
| Srednje | Micro-filtered, unoiled compressed air (0.01 µm) |
| Odzračevalni vtič | G 3/8 (for mounting a silencer) |
| Pretok [l/min] | 3000 |
