Natančen Tlačni reg.»FUTURA«Vel.2,G 3/8, 0.1 - 1 bar
SKU: 100108RIE
EAN: 4047322214216

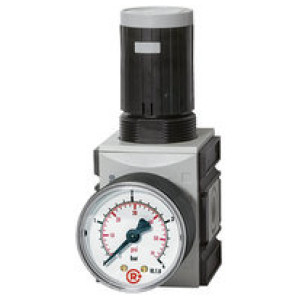

Precision pressure regulator, cont. pressure supply »FUTURA«, Size 2, G 3/8, Input pressure max. 16 bar, Control range 0.1 - 1 bar
Precision diaphragm pressure regulators with self-relieving design and excellent flow rates in modern design for mounting side by side.
By assembling two or more controllers together, it is possible to supply several working air circuits with different pressures via a single supply line.
Obrestno financiranje
- 18,30 € x 6 mesecev
- 36,20 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Velikost | Zaslon manometra max. [bar] | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100103RIE | G 3/8 | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 79,00 € |  | |
| 156645RIE | G 1/2 | 0.5 | 16 | 2 | 25 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 98,41 € | | |
| 100098RIE | G 1/4 | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 79,00 € | | |
| 100104RIE | G 3/8 | 0.1 | 2 | 1 | 2.5 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 79,00 € | | |
| 100108RIE | G 3/8 | 0.1 | 1 | 2 | 1.6 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 100,28 € | | |
| 156644RIE | G 3/8 | 0.5 | 16 | 2 | 25 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 98,41 € | | |
| 100106RIE | G 3/8 | 0.5 | 8 | 1 | 10 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 79,00 € | | |
| 100100RIE | G 1/4 | 0.2 | 4 | 1 | 6 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 79,00 € | | |
| 100109RIE | G 3/8 | 0.1 | 2 | 2 | 2.5 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 100,28 € | | |
| 100113RIE | G 1/2 | 0.1 | 1 | 2 | 1.6 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 100,28 € | | |
| 100107RIE | G 3/8 | 0.5 | 10 | 1 | 16 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 79,00 € | | |
| 156643RIE | G 3/8 | 0.5 | 16 | 1 | 25 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 77,52 € | | |
| 100110RIE | G 3/8 | 0.2 | 4 | 2 | 6 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 100,28 € | | |
| 100114RIE | G 1/2 | 0.1 | 2 | 2 | 2.5 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 100,28 € | | |
| 100116RIE | G 1/2 | 0.5 | 8 | 2 | 10 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 100,28 € | | |
| 100111RIE | G 3/8 | 0.5 | 8 | 2 | 10 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 100,28 € | | |
| 100117RIE | G 1/2 | 0.5 | 10 | 2 | 16 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 100,28 € | | |
| 100102RIE | G 1/4 | 0.5 | 10 | 1 | 16 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 79,00 € | | |
| 100105RIE | G 3/8 | 0.2 | 4 | 1 | 6 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 79,00 € | | |
| 100099RIE | G 1/4 | 0.1 | 2 | 1 | 2.5 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 79,00 € | | |
| 100112RIE | G 3/8 | 0.5 | 10 | 2 | 16 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 100,28 € | | |
| 100115RIE | G 1/2 | 0.2 | 4 | 2 | 6 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 100,28 € | | |
| 100101RIE | G 1/4 | 0.5 | 8 | 1 | 10 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 79,00 € | | |
| 156642RIE | G 1/4 | 0.5 | 16 | 1 | 25 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 77,52 € | |
Opis
Precision pressure regulator, cont. pressure supply »FUTURA«, Size 2, G 3/8, Input pressure max. 16 bar, Control range 0.1 - 1 bar
Precision diaphragm pressure regulators with self-relieving design and excellent flow rates in modern design for mounting side by side.
By assembling two or more controllers together, it is possible to supply several working air circuits with different pressures via a single supply line.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Pretok [l/min] | 4500 |
| Min. krmilno območje [bar] | 0.1 |
| Max. krmilno območje [bar] | 1 |
| Zaslon manometra max. [bar] | 1.6 |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 2.6 l/min (depending on secondary pressure) |

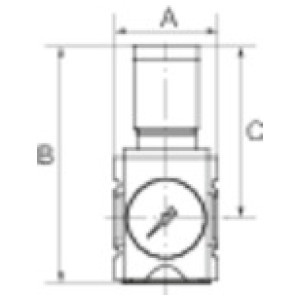

| A [mm] | 63.0 |
| B [mm] | 150.0 |
| C [mm] | 110.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
