* slike so simbolične

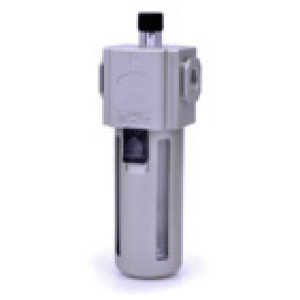

Naoljevalnik »GA« PC zbir.Zašč. kletka, Vel. 300, G 1/2
SKU: 178486RIE
EAN: 4047322666831
Mist oiler »GA«, PC container, Protective cage, Mounting bracket, Size 300, G1/2, Input pres. max. 10 bar, Working pres. 0.5-9 bar
Proportional lubricators, oil can be filled under pressure.
Čas dobave: Predvidoma 3 - 5 dni
40,74 €
| Šifra | Navoj | C [mm] | A [mm] | D [mm] | B [mm] | Velikost | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 178488RIE | G 1/2 | 49.5 | 80.0 | 155.0 | 204.5 | 400 | 8800 | Čas dobave: Predvidoma 3 - 5 dni | 63,04 € |  | |
| 178484RIE | G 1/4 | 45.0 | 62.5 | 136.0 | 181.0 | 300 | 4200 | Čas dobave: Predvidoma 3 - 5 dni | 40,74 € | | |
| 178487RIE | G 3/8 | 49.5 | 80.0 | 155.0 | 204.5 | 400 | 8800 | Čas dobave: Predvidoma 3 - 5 dni | 63,04 € | | |
| 178485RIE | G 3/8 | 45.0 | 62.5 | 136.0 | 181.0 | 300 | 5100 | Čas dobave: Predvidoma 3 - 5 dni | 40,74 € | | |
| 178486RIE | G 1/2 | 45.0 | 62.5 | 136.0 | 181.0 | 300 | 5100 | Čas dobave: Predvidoma 3 - 5 dni | 40,74 € | |
Opis
Mist oiler »GA«, PC container, Protective cage, Mounting bracket, Size 300, G1/2, Input pres. max. 10 bar, Working pres. 0.5-9 bar
Proportional lubricators, oil can be filled under pressure.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Min. temperaturno območje [°C] | -5 |
| Max. temperaturno območje [°C] | 70 |
| Max. vhodni tlak [bar] | 10 |
| Min. delovni tlak [bar] | 0.5 |
| Max. delovni tlak [bar] | 9 |
| Velikost | 300 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Vidna kupola | Brass/POM |
| Pretok [l/min] | 5100 |
| Posoda | Polycarbonate container with protective cage |

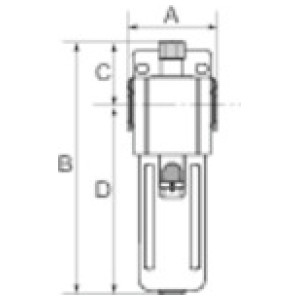

| A [mm] | 62.5 |
| B [mm] | 181.0 |
| C [mm] | 45.0 |
| D [mm] | 136.0 |
| Serija | GA |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
