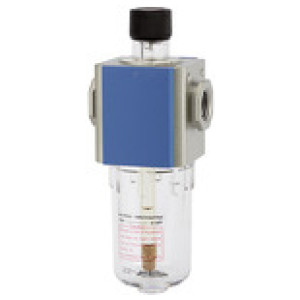

Naoljevalnik »G-mali«PC zbir.Vel. 200G 1/40.5 - 9 bar
SKU: 116440RIE
EAN: 4047322308649
Mist oiler »G-mini«, PC container and mounting bracket, Size 200, G 1/4, Input pressure max. 10 bar, Working pressure 0.5 - 9 bar
Proportional lubricators, oil can be filled under pressure.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Naoljevalnik »G-mali«PC zbir.Vel. 200G 1/40.5 - 9 bar
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/4
Ohišje: Die-cast aluminium
Posoda: Polycarbonate container
Serija: G-mini
Vidna kupola: Brass/POM
B [mm]: 119.0
Navoj: G 1/4
Ohišje: Die-cast aluminium
Posoda: Polycarbonate container
Serija: G-mini
Vidna kupola: Brass/POM
B [mm]: 119.0
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 116440RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 116438RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Mist oiler »G-mini«, PC container and mounting bracket, Size 200, G 1/4, Input pressure max. 10 bar, Working pressure 0.5 - 9 bar
Proportional lubricators, oil can be filled under pressure.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 10 |
| Min. delovni tlak [bar] | 0.5 |
| Max. delovni tlak [bar] | 9 |
| Velikost | 200 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Vidna kupola | Brass/POM |
| Max. temperatura medija [°C] | 70 |
| Max. sobna temperatura [°C] | 70 |
| Vzmet pokrova motorja | POM |
| Pretok [l/min] | 1950 |
| Posoda | Polycarbonate container |

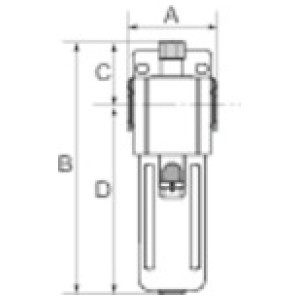

| A [mm] | 38.0 |
| B [mm] | 119.0 |
| C [mm] | 39.0 |
| D [mm] | 80.0 |
| Serija | G-mini |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
