Mini izpu.vent., 1.4305, G 1/4, vkl. prit. 10 - 18 bar
SKU: 103926RIE
EAN: 4047322211062

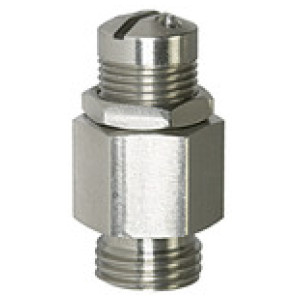

Mini bleeder valve, Stainless steel, not component checked, Operating temp. -20 °C to 180 °C, G 1/4, Trigger pressure 10 - 18 bar
Manual adjustment of the blow-off pressure (lock nut).
For compressed air and non-toxic, non-flammable gases, cannot be used for liquids due to free blow-off, not suitable for steam.
Čas dobave: Predvidoma 3 - 5 dni
30,78 €
| Šifra | Min. nastavljeni tlak [bar] | Max. nastavljeni tlak [bar] | Hitrost izpiranja max. [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 103924RIE | 3 | 7 | 350 | Čas dobave: Predvidoma 3 - 5 dni | 30,78 € |  | |
| 103922RIE | 0.5 | 1 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 30,78 € | | |
| 103928RIE | 30 | 60 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | 30,78 € | | |
| 103925RIE | 6 | 12 | 650 | Čas dobave: Predvidoma 3 - 5 dni | 30,78 € | | |
| 103927RIE | 16 | 32 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 30,78 € | | |
| 103926RIE | 10 | 18 | 870 | Čas dobave: Predvidoma 3 - 5 dni | 30,78 € | | |
| 103923RIE | 1 | 4 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 30,78 € | |
Opis
Mini bleeder valve, Stainless steel, not component checked, Operating temp. -20 °C to 180 °C, G 1/4, Trigger pressure 10 - 18 bar
Manual adjustment of the blow-off pressure (lock nut).
For compressed air and non-toxic, non-flammable gases, cannot be used for liquids due to free blow-off, not suitable for steam.
Tehnični podatki in specifikacije
| Min. obratovalni tlak [bar] | 0.5 |
| Max. obratovalni tlak [bar] | 60 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 180 |
| Vzmet | Stainless steel 1.4310 |
| Material | Stainless steel 1.4305 |
| Tesnilo | FKM |
| Navoj | G 1/4 |
| Min. nastavljeni tlak [bar] | 10 |

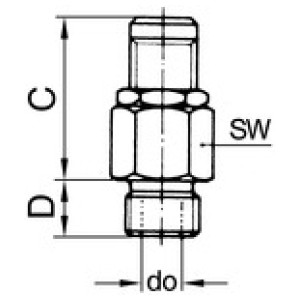

| a/f [mm] | 16 |
| narediti [mm] | 3.0 |
| Hitrost izpiranja max. [l/min] | 870 |
| Max. nastavljeni tlak [bar] | 18 |
| C [mm] | 27.0 |
| D [mm] | 7.0 |
