MikroFilter»FUTURA«PC zbir.0.01 µmVel.2,G 3/8Avt.
SKU: 100183RIE
EAN: 4047322214797

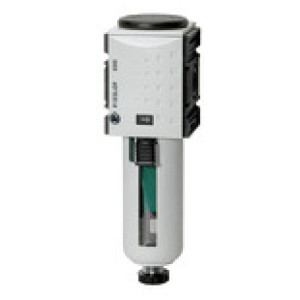

Microfilter »FUTURA«, PC container and protective cage, 0.01 µm, Size 2, G 3/8, 1.5 - 16 bar, Temp. -10°C to 50°C, Fully-automatic
Micro-filters in modern design for compliance with strict compressed air purity requirements.
Micro-filters are used to separate solid oil, water and solid impurities as small as 0.01 µm from compressed air and gases.
Obrestno financiranje
- 10,75 € x 24 mesecev
- 20,59 € x 12 mesecev
- 40,27 € x 6 mesecev
- 79,65 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

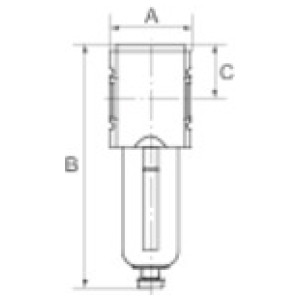

| Šifra | Navoj | Odtok kondenzata | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100176RIE | G 3/8 | Semi-automatic | 1 | 39.5 | 52.0 | 169.5 | 350 | Čas dobave: Predvidoma 3 - 5 dni | 95,78 € |  | |
| 100177RIE | G 3/8 | Semi-automatic | 2 | 47.8 | 63.0 | 194.8 | 450 | Čas dobave: Predvidoma 3 - 5 dni | 171,12 € | | |
| 100180RIE | G 1 | Semi-automatic | 4 | 63.0 | 85.0 | 252.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 234,24 € | | |
| 100181RIE | G 1/4 | Fully-automatic | 1 | 39.5 | 52.0 | 184.5 | 350 | Čas dobave: Predvidoma 3 - 5 dni | 144,68 € | | |
| 100184RIE | G 1/2 | Fully-automatic | 2 | 47.8 | 63.0 | 210.8 | 450 | Čas dobave: Predvidoma 3 - 5 dni | 220,16 € | | |
| 100185RIE | G 3/4 | Fully-automatic | 4 | 63.0 | 85.0 | 269.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 289,47 € | | |
| 100178RIE | G 1/2 | Semi-automatic | 2 | 47.8 | 63.0 | 194.8 | 450 | Čas dobave: Predvidoma 3 - 5 dni | 171,12 € | | |
| 100186RIE | G 1 | Fully-automatic | 4 | 63.0 | 85.0 | 269.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 289,47 € | | |
| 100183RIE | G 3/8 | Fully-automatic | 2 | 47.8 | 63.0 | 210.8 | 450 | Čas dobave: Predvidoma 3 - 5 dni | 220,16 € | | |
| 100182RIE | G 3/8 | Fully-automatic | 1 | 39.5 | 52.0 | 184.5 | 350 | Čas dobave: Predvidoma 3 - 5 dni | 144,68 € | | |
| 100179RIE | G 3/4 | Semi-automatic | 4 | 63.0 | 85.0 | 252.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 234,24 € | | |
| 100175RIE | G 1/4 | Semi-automatic | 1 | 39.5 | 52.0 | 169.5 | 350 | Čas dobave: Predvidoma 3 - 5 dni | 95,78 € | |
Opis
Microfilter »FUTURA«, PC container and protective cage, 0.01 µm, Size 2, G 3/8, 1.5 - 16 bar, Temp. -10°C to 50°C, Fully-automatic
Micro-filters in modern design for compliance with strict compressed air purity requirements.
Micro-filters are used to separate solid oil, water and solid impurities as small as 0.01 µm from compressed air and gases.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Element filtra | Borosilicate glass fibre |
| Rang filtra [µm] | 0.01 |
| Pretok [l/min] | 450 |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 63.0 |
| B [mm] | 210.8 |
| C [mm] | 47.8 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 0.1 bar |
| Vsebnost olja v ostanku [mg/m³] | < 0.01 |
| Odtok kondenzata | Fully-automatic |
| Ločevanje prahu | > 0.01 µm 99.999 % |
