MikroFilter »FUTURA-mali«, z PC zbiralnik, Velikost 0, G 1/4
SKU: 142450RIE
EAN: 4047322556750

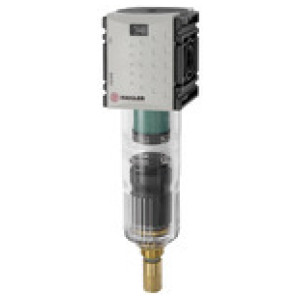

Microfilter »FUTURA-mini« PC container, 0.01 µm, Size 0, G 1/4, Input pressure 1.5 - 12 bar, Temp. -10°C to 50°C, Fully-auto. (NC)
Micro-filters in modern design for compliance with strict compressed air purity requirements.
Micro-filters are used to separate solid oil, water and solid impurities as small as 0.01 µm from compressed air and gases.
Obrestno financiranje
- 15,44 € x 12 mesecev
- 30,20 € x 6 mesecev
- 59,74 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Odtok kondenzata | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 142449RIE | Fully-automatic | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | 145,30 € |  | |
| 142448RIE | Semi-automatic | 132.0 | Čas dobave: Predvidoma 3 - 5 dni | 88,35 € | | |
| 142450RIE | Fully-automatic (NC) | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | 165,04 € | |
Opis
Microfilter »FUTURA-mini« PC container, 0.01 µm, Size 0, G 1/4, Input pressure 1.5 - 12 bar, Temp. -10°C to 50°C, Fully-auto. (NC)
Micro-filters in modern design for compliance with strict compressed air purity requirements.
Micro-filters are used to separate solid oil, water and solid impurities as small as 0.01 µm from compressed air and gases.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 12 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Plastic |
| Element filtra | Borosilicate glass fibre |
| Rang filtra [µm] | 0.01 |
| Pretok [l/min] | 190 |
| Posoda | Polycarbonate container |

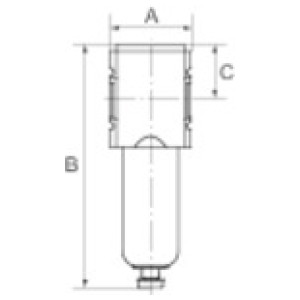

| A [mm] | 43.0 |
| B [mm] | 170.0 |
| C [mm] | 27.0 |
| Serija | FUTURA-mini |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 0.1 bar |
| Vsebnost olja v ostanku [mg/m³] | < 0.01 |
| Tesnilo | NBR |
| Odtok kondenzata | Fully-automatic (NC) |
| Ločevanje prahu | > 0.01 µm 99.999 % |
