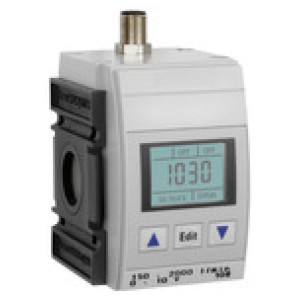

Merilnik diferenčnega tlaka»FUTURA«Vel.2, 200 - 5000 l / min

SKU: 100330RIE
EAN: 4047322351225

Differential pressure flow meter »FUTURA«, Size 2, Measurement range 200 - 5000 L/min, Operating pressure 0 - 16 bar

Differential pressure measuring system for detecting changes in flow rate or consumption and measuring energy efficiency. There is a differential pressure at the sensor as soon as a fluid starts to flow. Fast and accurate measurements can be achieved in this way. This robust instrument in a modern design offers a high level of safety (codable) and requires no maintenance.

Accessories:

Wall bracket or alternative a mounting bracket for wall mounting as a component of the

»FUTURA« service unit.

Wall brackets with a connection thread for mounting to an existing compressed air system.

Joiner set for easy adaptation as a component of the »FUTURA« service unit.

Adapter plates for adapting different »FUTURA« service unit sizes.

Čas dobave: Predvidoma 3 - 5 dni
1.405,16 €
ali od 37,41 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 100 € + 37,41 € x 48 mesecev
  • 100 € + 47,81 € x 36 mesecev
  • 100 € + 68,68 € x 24 mesecev
  • 100 € + 131,47 € x 12 mesecev
  • 100 € + 257,18 € x 6 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Min. merilno območje [l/min] Max. merilno območje [l/min] Zaloga Cena Nakup Natisni
100330RIE 200 5000
Čas dobave: Predvidoma 3 - 5 dni
1.405,16 € Natisni
100329RIE 150 2000
Čas dobave: Predvidoma 3 - 5 dni
1.405,16 € Natisni

Opis

Differential pressure flow meter »FUTURA«, Size 2, Measurement range 200 - 5000 L/min, Operating pressure 0 - 16 bar

Differential pressure measuring system for detecting changes in flow rate or consumption and measuring energy efficiency. There is a differential pressure at the sensor as soon as a fluid starts to flow. Fast and accurate measurements can be achieved in this way. This robust instrument in a modern design offers a high level of safety (codable) and requires no maintenance.

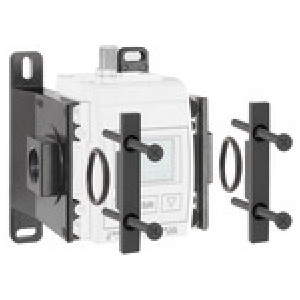

Accessories:

Wall bracket or alternative a mounting bracket for wall mounting as a component of the

»FUTURA« service unit.

Wall brackets with a connection thread for mounting to an existing compressed air system.

Joiner set for easy adaptation as a component of the »FUTURA« service unit.

Adapter plates for adapting different »FUTURA« service unit sizes.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 16
Max. temperaturno območje [°C] 50
Izhodni volumski pretok Analog 0 to 10 V
Min. merilno območje [l/min] 200
Max. merilno območje [l/min] 5000
Velikost 2
Serija FUTURA
Srednje Compressed air, neutral gases
Merilni sistem Differential pressure method
Operativna napetost 24 V DC
Zaslon Background lighting
