* slike so simbolične

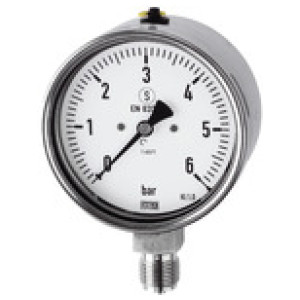

ManometerCrNi jeklena varnostna verzijaG1/2, 0 - 4 bar, Ø100
SKU: 102464RIE
EAN: 9030638
Pressure gauge, CrNi steel, Safety design, Connection radial bottom, G 1/2, Goods class 1.0, Measurement range 0 - 4 bar, Ø 100
Bourdon-tube pressure gauge (safety housing), CrNi steel type, with solid baffle wall and blow-out (safety housing).
Suitable for gaseous or liquid, corrosive and crystallising media which do not have high viscosity, also in corrosive atmosphere.
Čas dobave: Predvidoma 3 - 5 dni
263,81 €
ali od 12,91 € / mesec
Izračunaj obrok
Obrestno financiranje
- 12,91 € x 24 mesecev
- 24,70 € x 12 mesecev
- 48,32 € x 6 mesecev
- 95,58 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Merilno območje min. bar | Merilno območje max. bar | Povezava | Prednje steklo | Spodnja/Zgornja meja območja | Stopnja rasti na območju skale - bar [bar] | Razred točnosti | Premer [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 102450RIE | -1 | 0 | G 1/4 | Polycarbonate | Vacuum | 0.05 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € |  | |
| 102474RIE | 0 | 400 | G 1/2 | Laminated safety glass | Positive pressure | 10 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 309,33 € | | |
| 102463RIE | 0 | 2.5 | G 1/2 | Laminated safety glass | Positive pressure | 0.05 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 263,81 € | | |
| 102468RIE | 0 | 25 | G 1/2 | Laminated safety glass | Positive pressure | 0.5 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 263,81 € | | |
| 102473RIE | 0 | 250 | G 1/2 | Laminated safety glass | Positive pressure | 5 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 309,33 € | | |
| 102455RIE | 0 | 10 | G 1/4 | Polycarbonate | Positive pressure | 0.5 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 102458RIE | 0 | 40 | G 1/4 | Polycarbonate | Positive pressure | 2 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 102472RIE | 0 | 160 | G 1/2 | Laminated safety glass | Positive pressure | 5 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 309,33 € | | |
| 102457RIE | 0 | 25 | G 1/4 | Polycarbonate | Positive pressure | 1 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 102471RIE | 0 | 100 | G 1/2 | Laminated safety glass | Positive pressure | 2 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 309,33 € | | |
| 102453RIE | 0 | 4 | G 1/4 | Polycarbonate | Positive pressure | 0.2 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 102461RIE | 0 | 1 | G 1/2 | Laminated safety glass | Positive pressure | 0.02 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 263,81 € | | |
| 102459RIE | 0 | 60 | G 1/4 | Polycarbonate | Positive pressure | 2 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 102466RIE | 0 | 10 | G 1/2 | Laminated safety glass | Positive pressure | 0.2 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 263,81 € | | |
| 102470RIE | 0 | 60 | G 1/2 | Laminated safety glass | Positive pressure | 1 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 309,33 € | | |
| 102454RIE | 0 | 6 | G 1/4 | Polycarbonate | Positive pressure | 0.2 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 102460RIE | 0 | 100 | G 1/4 | Polycarbonate | Positive pressure | 5 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 102452RIE | 0 | 2.5 | G 1/4 | Polycarbonate | Positive pressure | 0.1 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 102464RIE | 0 | 4 | G 1/2 | Laminated safety glass | Positive pressure | 0.1 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 263,81 € | | |
| 102467RIE | 0 | 16 | G 1/2 | Laminated safety glass | Positive pressure | 0.5 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 263,81 € | | |
| 102469RIE | 0 | 40 | G 1/2 | Laminated safety glass | Positive pressure | 1 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 263,81 € | | |
| 102462RIE | 0 | 1.6 | G 1/2 | Laminated safety glass | Positive pressure | 0.05 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 263,81 € | | |
| 102465RIE | 0 | 6 | G 1/2 | Laminated safety glass | Positive pressure | 0.1 | 1.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 263,81 € | | |
| 102456RIE | 0 | 16 | G 1/4 | Polycarbonate | Positive pressure | 0.5 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | | |
| 102451RIE | 0 | 1.6 | G 1/4 | Polycarbonate | Positive pressure | 0.05 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 132,43 € | |
Opis
Pressure gauge, CrNi steel, Safety design, Connection radial bottom, G 1/2, Goods class 1.0, Measurement range 0 - 4 bar, Ø 100
Bourdon-tube pressure gauge (safety housing), CrNi steel type, with solid baffle wall and blow-out (safety housing).
Suitable for gaseous or liquid, corrosive and crystallising media which do not have high viscosity, also in corrosive atmosphere.
Tehnični podatki in specifikacije
| Povezava | G 1/2 |
| Položaj povezave | radial on bottom |
| Premer [mm] | 100 |
| Vrsta | 232.30 |
| Razred točnosti | 1.0 |
| Min. temperatura medija [°C] | -40 |
| Max. temperatura medija [°C] | 200 |
| Min. sobna temperatura [°C] | -40 |
| Max. sobna temperatura [°C] | 60 |
| Material | CrNi steel |
| Prednje steklo | Laminated safety glass |
| Merilno območje max. bar | 4 |
| Stopnja rasti na območju skale - bar [bar] | 0.1 |
| Spodnja/Zgornja meja območja | Positive pressure |
| Material Prozessanschluss | CrNi steel |
