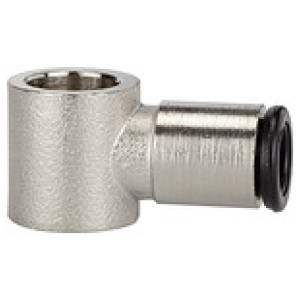

L-obročni del, na votli vijak G 1/4, za cev zunanja Ø 6 mm
SKU: 108836RIE
EAN: 4047322285803
L-ring piece, for hollow screw G 1/4, for hose exterior Ø 6 mm, Working pressure -0.98 to 16 bar, Operating temp. -20 °C to 70 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
3,84 €

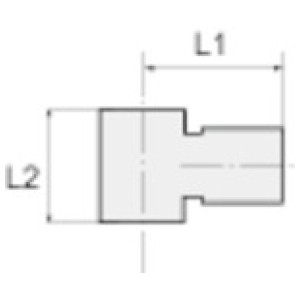

| Šifra | Rokav | Za banjo vijak | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108835RIE | POM black | G 1/8 | 8 | 15.0 | 24.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,64 € |  | |
| 108834RIE | POM black | G 1/8 | 6 | 15.0 | 23.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,28 € | | |
| 108838RIE | Black nickel-plated brass | G 1/4 | 10 | 17.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,61 € | | |
| 108833RIE | POM black | G 1/8 | 4 | 15.0 | 20.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,46 € | | |
| 108840RIE | POM black | G 3/8 | 8 | 20.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,79 € | | |
| 108836RIE | POM black | G 1/4 | 6 | 17.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,84 € | | |
| 108839RIE | Black nickel-plated brass | G 1/4 | 12 | 17.0 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,87 € | | |
| 108837RIE | POM black | G 1/4 | 8 | 17.0 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,89 € | | |
| 108842RIE | Black nickel-plated brass | G 3/8 | 12 | 20.0 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,93 € | | |
| 108841RIE | Black nickel-plated brass | G 3/8 | 10 | 20.0 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,10 € | | |
| 108832RIE | POM black | M5 | 4 | 9.0 | 18.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,05 € | |
Opis
L-ring piece, for hollow screw G 1/4, for hose exterior Ø 6 mm, Working pressure -0.98 to 16 bar, Operating temp. -20 °C to 70 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Priporočena cev | PA, PU |
| Rokav | POM black |
| Vpenjalni obroč | Stainless steel |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 24.0 |
| L2 [mm] | 17.0 |
| Za banjo vijak | G 1/4 |
| Material | Nickel-plated brass |
