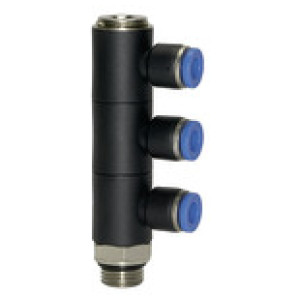

L-multi-dist. Blue serija", 3-stransko, vrt., G 3/8
SKU: 135692RIE
EAN: 4047322498456
L-multi-distributor »Blue Series«, 3-fold, rotating, G 3/8 o., for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
18,09 €
Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
135693RIE | G 1/2 | 8 | 8 | 24 | 28.5 | 85.7 | Čas dobave: Predvidoma 3 - 5 dni | 23,38 € | | |
109679RIE | G 1/4 | 6 | 8 | 17 | 26.5 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,86 € | | |
135692RIE | G 3/8 | 8 | 6 | 20 | 24.5 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,09 € | | |
109677RIE | G 1/8 | 4 | 8 | 14 | 24.5 | 59.1 | Čas dobave: Predvidoma 3 - 5 dni | 9,96 € | | |
109680RIE | G 1/4 | 6 | 10 | 17 | 29.9 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 14,16 € | | |
109683RIE | G 3/8 | 8 | 10 | 20 | 31.9 | 82.2 | Čas dobave: Predvidoma 3 - 5 dni | 21,70 € | | |
109682RIE | G 3/8 | 8 | 8 | 20 | 28.5 | 82.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,29 € | | |
135695RIE | G 1/2 | 8 | 12 | 24 | 35.4 | 85.7 | Čas dobave: Predvidoma 3 - 5 dni | 26,01 € | | |
109678RIE | G 1/4 | 6 | 6 | 17 | 23.5 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,04 € | | |
135694RIE | G 1/2 | 8 | 10 | 24 | 34.5 | 85.7 | Čas dobave: Predvidoma 3 - 5 dni | 24,86 € | | |
135691RIE | G 3/8 | 8 | 4 | 20 | 23.5 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,62 € | | |
135690RIE | G 1/4 | 6 | 4 | 17 | 24.5 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,43 € | | |
109681RIE | G 1/4 | 6 | 12 | 17 | 30.8 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 15,09 € | | |
109684RIE | G 3/8 | 8 | 12 | 20 | 32.8 | 82.2 | Čas dobave: Predvidoma 3 - 5 dni | 22,52 € | | |
109675RIE | G 1/8 | 4 | 4 | 14 | 22.5 | 59.1 | Čas dobave: Predvidoma 3 - 5 dni | 10,59 € | | |
109676RIE | G 1/8 | 4 | 6 | 14 | 21.5 | 59.1 | Čas dobave: Predvidoma 3 - 5 dni | 9,78 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 80 |
Min. temperaturno območje [°C] | -20 |
Tesnilo | NBR |
Srednje | Compressed air, neutral and safe gases and liquids |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Navoj | G 3/8 |
Za cevi O.D. [mm] | 6 |
L1 [mm] | 81.0 |
L2 [mm] | 24.5 |
a/f [mm] | 20 |
Šestkotna glava vtičnice [mm] | 8 |
Material | Plastic and nickel-plated brass |
