* slike so simbolične

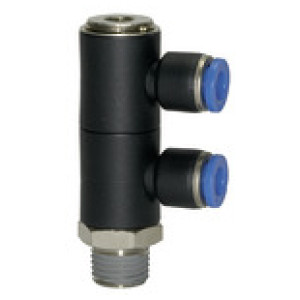

L-multi-dist. Blue serija, 2-stransko, vrt., R 1/2
SKU: 109674RIE
EAN: 4047322388986
L-multi-distributor »Blue Series«, 2-fold, rotating, R 1/2 o., for hose exterior Ø 12 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
19,41 €
| Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 109669RIE | R 3/8 | 8 | 8 | 20 | 28.5 | 62.2 | Čas dobave: Predvidoma 3 - 5 dni | 14,38 € |  | |
| 109672RIE | R 1/2 | 8 | 8 | 24 | 28.5 | 66.7 | Čas dobave: Predvidoma 3 - 5 dni | 16,19 € | | |
| 109667RIE | R 3/8 | 8 | 4 | 17 | 24.5 | 61.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,70 € | | |
| 109663RIE | R 1/4 | 6 | 6 | 17 | 23.5 | 59.5 | Čas dobave: Predvidoma 3 - 5 dni | 9,96 € | | |
| 109666RIE | R 1/4 | 6 | 12 | 17 | 30.8 | 59.5 | Čas dobave: Predvidoma 3 - 5 dni | 12,53 € | | |
| 109660RIE | R 1/8 | 4 | 6 | 14 | 21.5 | 44.3 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € | | |
| 109673RIE | R 1/2 | 8 | 10 | 24 | 34.7 | 66.7 | Čas dobave: Predvidoma 3 - 5 dni | 17,41 € | | |
| 109668RIE | R 3/8 | 8 | 6 | 17 | 23.6 | 61.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,94 € | | |
| 109671RIE | R 3/8 | 8 | 12 | 20 | 32.8 | 66.2 | Čas dobave: Predvidoma 3 - 5 dni | 15,98 € | | |
| 109674RIE | R 1/2 | 8 | 12 | 24 | 35.4 | 66.7 | Čas dobave: Predvidoma 3 - 5 dni | 19,41 € | | |
| 109662RIE | R 1/4 | 6 | 4 | 17 | 24.5 | 59.5 | Čas dobave: Predvidoma 3 - 5 dni | 9,96 € | | |
| 109661RIE | R 1/8 | 4 | 8 | 14 | 24.5 | 44.3 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € | | |
| 109659RIE | R 1/8 | 4 | 4 | 14 | 22.5 | 44.3 | Čas dobave: Predvidoma 3 - 5 dni | 10,31 € | | |
| 109665RIE | R 1/4 | 6 | 10 | 17 | 29.9 | 59.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,31 € | | |
| 109670RIE | R 3/8 | 8 | 10 | 20 | 31.9 | 62.2 | Čas dobave: Predvidoma 3 - 5 dni | 15,49 € | | |
| 109664RIE | R 1/4 | 6 | 8 | 17 | 26.5 | 59.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,59 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/2 |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 66.7 |
| L2 [mm] | 35.4 |
| a/f [mm] | 24 |
| Šestkotna glava vtičnice [mm] | 8 |
| Material | Plastic and nickel-plated brass |
