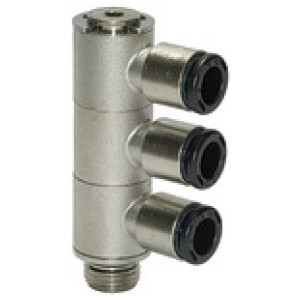

L-multi-dist. 3-stransko Click-klak, vrt., G 1/4
SKU: 108812RIE
EAN: 4047322210324
L-multi-distributor 3-fold »click-clock«, rotating, G 1/4 o., for hose exterior Ø 10 mm, Working pressure -0.99 to 16 bar
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Šifra | Navoj | a/f [mm] | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
108812RIE | G 1/4 | 4 | 10 | 31.4 | 64.3 | Čas dobave: Predvidoma 3 - 5 dni | 23,64 € | | |
108808RIE | G 1/8 | 3 | 6 | 23.5 | 56.7 | Čas dobave: Predvidoma 3 - 5 dni | 18,31 € | | |
108807RIE | G 1/8 | 3 | 4 | 20.2 | 56.7 | Čas dobave: Predvidoma 3 - 5 dni | 16,86 € | | |
108811RIE | G 1/4 | 4 | 8 | 26.5 | 64.3 | Čas dobave: Predvidoma 3 - 5 dni | 22,52 € | | |
108809RIE | G 1/8 | 3 | 8 | 24.8 | 56.7 | Čas dobave: Predvidoma 3 - 5 dni | 20,07 € | | |
108810RIE | G 1/4 | 4 | 6 | 25.6 | 64.3 | Čas dobave: Predvidoma 3 - 5 dni | 20,07 € | |
Opis
L-multi-distributor 3-fold »click-clock«, rotating, G 1/4 o., for hose exterior Ø 10 mm, Working pressure -0.99 to 16 bar
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
Serija | click-clock |
Min. delovni tlak [bar] | -0.99 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 80 |
Priporočena cev | PA, PU |
Rokav | Hostaform |
Vpenjalni obroč | Stainless steel |
Navoj | G 1/4 |
Za cevi O.D. [mm] | 10 |
L1 [mm] | 64.3 |
L2 [mm] | 31.4 |
a/f [mm] | 4 |
Material | Nickel-plated brass |
