* slike so simbolične

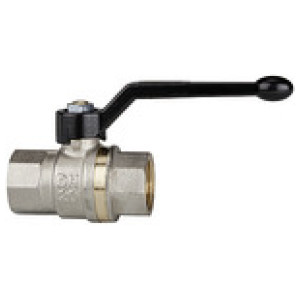

krogelni ventil z podaljšanim navojem IT/IT, Rp 1
SKU: 103239RIE
EAN: 4047322277426
Ball valve long thread design, IT/IT, nickel-plated brass, Operating temperature -15 °C to 90 °C, Rp 1, DN 25, PN max. 40 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Čas dobave: Predvidoma 3 - 5 dni
43,25 €

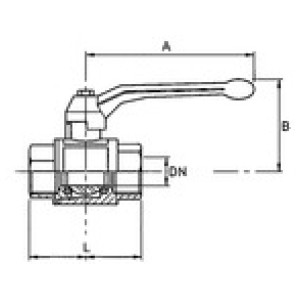

| Šifra | Navoj | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 103238RIE | Rp 3/4 | 20 | 53.0 | 70.0 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 30,07 € |  | |
| 103235RIE | Rp 1/4 | 8 | 42.0 | 46.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,11 € | | |
| 103239RIE | Rp 1 | 25 | 57.0 | 84.0 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 43,25 € | | |
| 103242RIE | Rp 2 | 50 | 92.0 | 130.0 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | 163,16 € | | |
| 103241RIE | Rp 1 1/2 | 40 | 76.0 | 108.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 107,14 € | | |
| 103237RIE | Rp 1/2 | 15 | 46.0 | 61.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,79 € | | |
| 103240RIE | Rp 1 1/4 | 32 | 70.0 | 97.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 70,69 € | | |
| 103236RIE | Rp 3/8 | 10 | 42.0 | 50.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,36 € | |
Opis
Ball valve long thread design, IT/IT, nickel-plated brass, Operating temperature -15 °C to 90 °C, Rp 1, DN 25, PN max. 40 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Tehnični podatki in specifikacije
| Material | Nickel-plated brass |
| Max. obratovalni tlak [bar] | 40 |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 90 |
| Navoj | Rp 1 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | HNBR / EPDM / PTFE |
| Ročica | Aluminium, painted black |
| Standardni navoj | Thread acc. to ISO 7-1 |
| Material navojev | Brass with a bare metal surface |
| DN | 25 |
| L [mm] | 84.0 |
| A [mm] | 105.0 |
| B [mm] | 57.0 |
