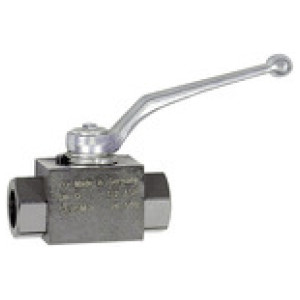

krogelni ventil, visoki tlak, G notranji navoj, jeklo, G 1/8
SKU: 103514RIE
EAN: 4047322081962
Ball valve, High pressure design, G interior thread, Steel, Operating temperature -10 °C to 100 °C, G 1/8, DN 4, PN max. 500 bar
For liquid and lubricating media.
Available versions:
- For solderless tube fittings acc. to DIN 2353, lightweight series acc. to ISO 8434-1.
- For solderless tube fittings acc. to DIN 2353, heavy-duty series acc. to ISO 8434-1.
- With female pipe thread acc. to DIN ISO 228-1 (BSP).

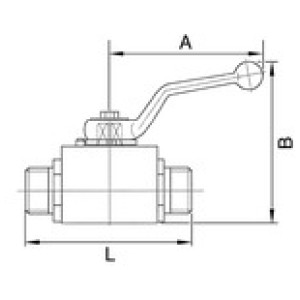

| Šifra | Navoj | DN | L [mm] | B [mm] | A [mm] | Max. obratovalni tlak [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 103520RIE | G 1 | 25 | 115.0 | 128.0 | 187.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 91,98 € |  | |
| 103514RIE | G 1/8 | 4 | 69.0 | 55.0 | 76.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 39,54 € | | |
| 103516RIE | G 3/8 | 10 | 73.0 | 68.0 | 100.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 37,71 € | | |
| 103515RIE | G 1/4 | 6 | 69.0 | 55.0 | 76.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 32,22 € | | |
| 103518RIE | G 5/8 | 16 | 88.0 | 105.0 | 166.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 160,71 € | | |
| 103517RIE | G 1/2 | 12 | 82.0 | 92.0 | 112.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 41,21 € | | |
| 103519RIE | G 3/4 | 20 | 93.0 | 121.0 | 187.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 72,10 € | |
Opis
Ball valve, High pressure design, G interior thread, Steel, Operating temperature -10 °C to 100 °C, G 1/8, DN 4, PN max. 500 bar
For liquid and lubricating media.
Available versions:
- For solderless tube fittings acc. to DIN 2353, lightweight series acc. to ISO 8434-1.
- For solderless tube fittings acc. to DIN 2353, heavy-duty series acc. to ISO 8434-1.
- With female pipe thread acc. to DIN ISO 228-1 (BSP).
Tehnični podatki in specifikacije
| Ohišje | Steel |
| Max. obratovalni tlak [bar] | 500 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 100 |
| Navoj | G 1/8 |
| DN | 4 |
| Krogla | Hard-chrome plated steel |
| Gred izbirnika | Steel |
| Tesnilo gredi izbirnika | NBR |
| Kontrolno kroglično tesnilo | POM |
| Bore inball | Full bore |
| A [mm] | 76.0 |
| L [mm] | 69.0 |
| B [mm] | 55.0 |
