* slike so simbolične

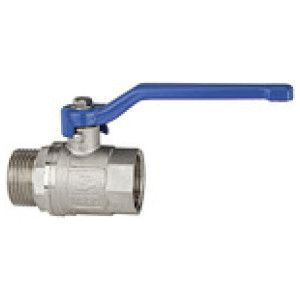

krogelni ventil »ventil linija«, modra ročica, IT/ET, G 3/4
SKU: 115722RIE
EAN: 4047322074339
Ball valve »valve line« Hand lever blue, Nickel-plated brass, IT/ET, G 3/4, DN 20, Operating temp. -20 °C to 120 °C, PN max 25 bar
Extremely economical standard ball valves made of nickel-plated brass for compressed air, water, non-toxic and non-corrosive gases and liquids.
Čas dobave: Predvidoma 3 - 5 dni
10,59 €

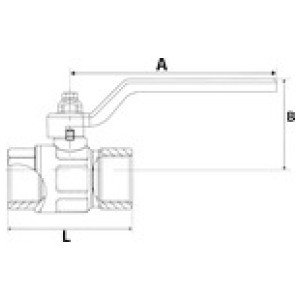

| Šifra | Navoj | C Ø [mm] | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 115722RIE | G 3/4 | 19.0 | 20 | 49.0 | 65.0 | 98.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,59 € |  | |
| 115725RIE | G 1 1/2 | 37.0 | 40 | 71.0 | 98.0 | 138.0 | Čas dobave: Predvidoma 3 - 5 dni | 37,59 € | | |
| 115723RIE | G 1 | 24.0 | 25 | 55.0 | 74.0 | 118.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,98 € | | |
| 115719RIE | G 1/4 | 8.0 | 8 | 37.0 | 40.0 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,47 € | | |
| 115721RIE | G 1/2 | 14.5 | 15 | 45.0 | 50.0 | 98.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,26 € | | |
| 115726RIE | G 2 | 45.0 | 50 | 79.0 | 111.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 60,12 € | | |
| 115720RIE | G 3/8 | 10.0 | 10 | 37.0 | 40.0 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,47 € | | |
| 115724RIE | G 1 1/4 | 30.0 | 32 | 58.0 | 83.0 | 118.0 | Čas dobave: Predvidoma 3 - 5 dni | 26,05 € | |
Opis
Ball valve »valve line« Hand lever blue, Nickel-plated brass, IT/ET, G 3/4, DN 20, Operating temp. -20 °C to 120 °C, PN max 25 bar
Extremely economical standard ball valves made of nickel-plated brass for compressed air, water, non-toxic and non-corrosive gases and liquids.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 25 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 120 |
| Navoj | G 3/4 |
| Krogla | Nickel-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | NBR |
| Ročica | Steel Q235-A (1.0038) with PVC-coating |
| Standardni navoj | G thread acc. to DIN EN ISO 288-1 |
| Material navojev | Nickel-plated brass |
| Ohišje | Nickel-plated brass |
| DN | 20 |
| L [mm] | 65.0 |
| A [mm] | 98.0 |
| B [mm] | 49.0 |
| C Ø [mm] | 19.0 |
