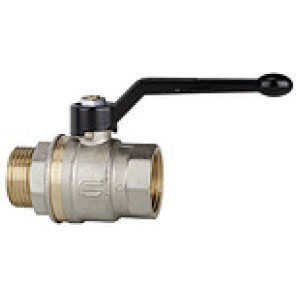

krogelni ventil stinardna oblika, polni pretok, IT/ET, G 1/4
SKU: 103133RIE
EAN: 4047322073875
Ball valve standard design, full passage, IT/ET, nickel-plated brass, Operating temp. -15 °C to 90 °C, G 1/4, DN 8, PN max. 63 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Čas dobave: Predvidoma 3 - 5 dni
17,19 €
| Šifra | Navoj | E [mm] | F [mm] | PN [bar] | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103140RIE | G 2 | 16.5 | 16.5 | 40 | 50 | 92.4 | 121.0 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | 144,55 € |  | |
| 103133RIE | G 1/4 | 9.4 | 12.0 | 63 | 8 | 42.0 | 51.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,19 € | | |
| 103138RIE | G 1 1/4 | 13.0 | 13.5 | 40 | 32 | 70.1 | 91.5 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 61,09 € | | |
| 103139RIE | G 1 1/2 | 14.5 | 14.5 | 40 | 40 | 76.1 | 104.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 91,93 € | | |
| 103135RIE | G 1/2 | 9.5 | 9.5 | 40 | 15 | 45.8 | 59.8 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,73 € | | |
| 103136RIE | G 3/4 | 10.5 | 10.5 | 40 | 20 | 53.4 | 69.5 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 25,95 € | | |
| 103137RIE | G 1 | 12.0 | 12.0 | 40 | 25 | 57.3 | 78.8 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 37,77 € | | |
| 103134RIE | G 3/8 | 8.6 | 12.0 | 63 | 10 | 42.0 | 53.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,35 € | |
Opis
Ball valve standard design, full passage, IT/ET, nickel-plated brass, Operating temp. -15 °C to 90 °C, G 1/4, DN 8, PN max. 63 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Tehnični podatki in specifikacije
| Material | Nickel-plated brass |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 90 |
| Navoj | G 1/4 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | 2 O-rings HNBR/EPDM peroxide crosslinked, sealing ring PTFE |
| PN [bar] | 63 |
| Ročica | Aluminium, painted black |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| Material navojev | Brass with a bare metal surface |
| DN | 8 |
| L [mm] | 51.0 |
| A [mm] | 85.0 |
| B [mm] | 42.0 |
| E [mm] | 9.4 |
| F [mm] | 12.0 |
