* slike so simbolične

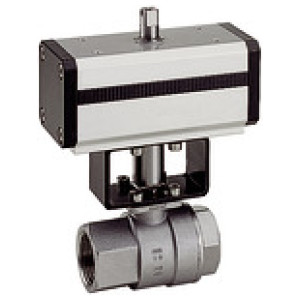

krogelni ventil nerjavno jeklo, pnevmatski vklop, Rp 1/2
SKU: 154072RIE
EAN: 4047322612746
Stainless steel ball valve, Pneumatic actuation drive, double-acting, Operating temp. -20 °C to 150 °C, Rp 1/2, PN max. 100 bar
Ball valves with pneumatic actuator. Pneumatic, double-piston, part-turn actuator, double-rocker principle.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
krogelni ventil nerjavno jeklo, pnevmatski vklop, Rp 1/2
Adapter ventila: Supplied as standard
Material krogelnega ventila: Stainless steel 1.4401/1.4301/1.4310/1.4408, with ISO flange
Navoj: Rp 1/2
Pogonski material: Anodised aluminium
Premaz za krogelni ventil: PTFE / FKM
Različica: double-acting
A [mm]: 114.0
B [mm]: 139.0
Material krogelnega ventila: Stainless steel 1.4401/1.4301/1.4310/1.4408, with ISO flange
Navoj: Rp 1/2
Pogonski material: Anodised aluminium
Premaz za krogelni ventil: PTFE / FKM
Različica: double-acting
A [mm]: 114.0
B [mm]: 139.0

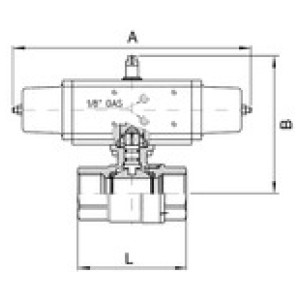

| Šifra | Navoj | DN | L [mm] | A [mm] | B [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 103582RIE | Rp 1/2 | 15 | 61.0 | 114.0 | 139.0 | 160 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 103583RIE | Rp 3/4 | 20 | 70.0 | 130.0 | 153.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 384,20 € | | |
| 103587RIE | Rp 2 | 50 | 125.0 | 169.0 | 196.0 | 40 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 103585RIE | Rp 1 1/4 | 32 | 95.0 | 144.0 | 171.0 | 64 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 154071RIE | Rp 3/8 | 10 | 51.0 | 114.0 | 134.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 154072RIE | Rp 1/2 | 15 | 61.0 | 114.0 | 139.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 103581RIE | Rp 3/8 | 10 | 51.0 | 114.0 | 134.0 | 160 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 103584RIE | Rp 1 | 25 | 85.0 | 130.0 | 157.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 420,96 € | | |
| 103586RIE | Rp 1 1/2 | 40 | 105.0 | 152.0 | 181.0 | 64 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Stainless steel ball valve, Pneumatic actuation drive, double-acting, Operating temp. -20 °C to 150 °C, Rp 1/2, PN max. 100 bar
Ball valves with pneumatic actuator. Pneumatic, double-piston, part-turn actuator, double-rocker principle.
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Material krogelnega ventila | Stainless steel 1.4401/1.4301/1.4310/1.4408, with ISO flange |
| Premaz za krogelni ventil | PTFE / FKM |
| Premaz za pogon | NBR |
| Max. vodeni tlak [bar] | 5.6 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Supplied as standard |
| Navoj | Rp 1/2 |
| DN | 15 |
| Različica | double-acting |
| B [mm] | 139.0 |
| L [mm] | 61.0 |
| A [mm] | 114.0 |
| PN [bar] | 100 |
