* slike so simbolične

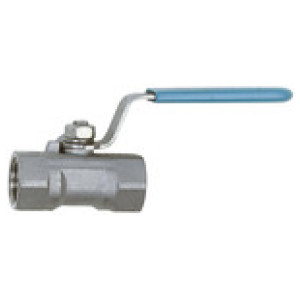

krogelni ventil nerjavno jeklo 1.4408, 1-delno, mala, G 1/2
SKU: 103483RIE
EAN: 4047322081122
Stainless steel ball valve 1.4408, 1-piece, Small series, Operating temperature -20 °C to 150 °C, G 1/2, DN 15, PN max. 63 bar
Čas dobave: Predvidoma 3 - 5 dni
37,65 €
| Šifra | Navoj | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 103487RIE | G 1 1/2 | 40 | 62.0 | 84.0 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | 141,43 € |  | |
| 103488RIE | G 2 | 50 | 68.0 | 100.0 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | 199,98 € | | |
| 103486RIE | G 1 1/4 | 32 | 57.0 | 77.0 | 116.0 | Čas dobave: Predvidoma 3 - 5 dni | 120,05 € | | |
| 103483RIE | G 1/2 | 15 | 41.0 | 59.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | 37,65 € | | |
| 103481RIE | G 1/4 | 8 | 34.0 | 39.0 | 69.0 | Čas dobave: Predvidoma 3 - 5 dni | 35,09 € | | |
| 103482RIE | G 3/8 | 10 | 38.0 | 44.0 | 83.0 | Čas dobave: Predvidoma 3 - 5 dni | 35,09 € | | |
| 103485RIE | G 1 | 25 | 52.0 | 72.0 | 116.0 | Čas dobave: Predvidoma 3 - 5 dni | 82,95 € | | |
| 103484RIE | G 3/4 | 20 | 45.0 | 60.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | 47,43 € | |
Opis
Stainless steel ball valve 1.4408, 1-piece, Small series, Operating temperature -20 °C to 150 °C, G 1/2, DN 15, PN max. 63 bar
Tehnični podatki in specifikacije
| Ohišje | Stainless steel 1.4408 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Krogla | Stainless steel 1.4408 |
| Krogelno tesnilo | RPTFE (15 % glass fibre reinforced) |
| Stebelno tesnilo | RPTFE (15 % glass fibre reinforced) |
| Ročica | Stainless steel 1.4301, with plastic coating |
| Delovni tlak | max. 63 bar (dependent on temperature) |
| Navoj | G 1/2 |
| DN | 15 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| A [mm] | 96.0 |
| B [mm] | 41.0 |
| L [mm] | 59.0 |
