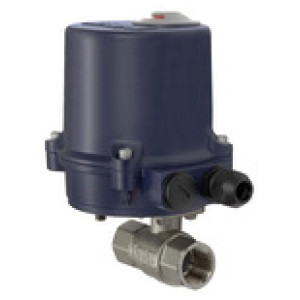

krogelni ventil medenina, električni vklop, 24 V DC, Rp 1 1/2
SKU: 103704RIE
EAN: 4047322339261
Brass ball valve, Electrical actuation drive, 24 V DC, Operating temperature -20 °C to 70 °C, Rp 1 1/2, DN 40, PN max. 25 bar
Voltage range 230 VAC, 50 Hz or 24 VDC.
2-way cock, full bore, for neutral gases and liquids.
Reversible electric rotary actuator.
Čas dobave: Predvidoma 3 - 5 dni
868,37 €
ali od 23,11 € / mesec
Izračunaj obrok
Obrestno financiranje
- 23,11 € x 48 mesecev
- 29,53 € x 36 mesecev
- 42,43 € x 24 mesecev
- 81,22 € x 12 mesecev
- 158,88 € x 6 mesecev
- 314,24 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

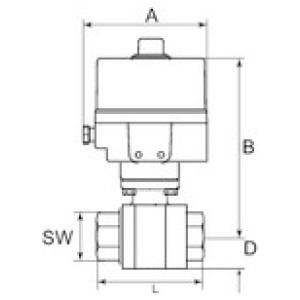

| Šifra | Navoj | DN | D [mm] | a/f [mm] | PN [bar] | L [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103700RIE | Rp 1/2 | 15 | 17.0 | 26 | 40 | 75.0 | 164.5 | Čas dobave: Predvidoma 3 - 5 dni | 784,41 € |  | |
| 103702RIE | Rp 1 | 25 | 25.0 | 41 | 40 | 90.0 | 170.5 | Čas dobave: Predvidoma 3 - 5 dni | 801,44 € | | |
| 103704RIE | Rp 1 1/2 | 40 | 36.0 | 55 | 25 | 120.0 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | 868,37 € | | |
| 103701RIE | Rp 3/4 | 20 | 20.0 | 32 | 40 | 80.0 | 167.0 | Čas dobave: Predvidoma 3 - 5 dni | 786,88 € | | |
| 103703RIE | Rp 1 1/4 | 32 | 30.0 | 50 | 40 | 110.0 | 181.5 | Čas dobave: Predvidoma 3 - 5 dni | 839,52 € | | |
| 103705RIE | Rp 2 | 50 | 44.0 | 70 | 25 | 140.0 | 199.5 | Čas dobave: Predvidoma 3 - 5 dni | 936,24 € | |
Opis
Brass ball valve, Electrical actuation drive, 24 V DC, Operating temperature -20 °C to 70 °C, Rp 1 1/2, DN 40, PN max. 25 bar
Voltage range 230 VAC, 50 Hz or 24 VDC.
2-way cock, full bore, for neutral gases and liquids.
Reversible electric rotary actuator.
Tehnični podatki in specifikacije
| Ohišje | Aluminium powder-coated |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Material | Nickel-plated brass |
| Indikator položaja | Manually operated |
| Krogelno tesnilo | PTFE, glass fibre-reinforced |
| Tesnilo gredi izbirnika | FKM |
| Min. sobna temperatura [°C] | -30 |
| Max. sobna temperatura [°C] | 70 |
| Delovni cikel [%] | 30 |
| IP zaščita | IP 68 |
| Relativna vlažnost | 30 % to 95 % |
| Montažna prirobnica | ISO 5211 |
| Krogla | Hard chrome-plated brass |
| Gred izbirnika | Hard chrome-plated brass |
| Navoj | Rp 1 1/2 |
| DN | 40 |
| Napetost | 24 VDC |
| L [mm] | 120.0 |
| A [mm] | 153.0 |
| D [mm] | 36.0 |
| B [mm] | 188.0 |
| a/f [mm] | 55 |
| PN [bar] | 25 |
| Čas aktivacije [sec.] | 20 |
