krogelni ventil EN 331 DVGW, nikljana medenina, Ročica, Rp/R 1
SKU: 133183RIE
EAN: 4047322476744
Ball valve EN 331 DVGW, nickel-plated brass, Hand lever, IT/ET, Rp/R 1, DN 25, Operating temp. -15 °C to 60 °C, PN max. 5 bar
Ball valves with full bore, for gas installations. Applications: Natural gas, LPG, town gas
Čas dobave: Predvidoma 3 - 5 dni
64,17 €
ali od 11,71 € / mesec
Izračunaj obrok
Obrestno financiranje
- 11,71 € x 6 mesecev
- 23,17 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

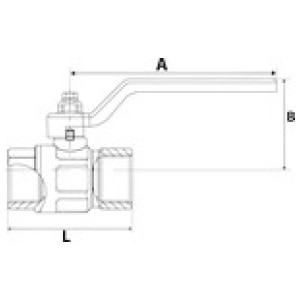

| Šifra | Navoj | Stebelno tesnilo | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 133185RIE | Rp/R 1 1/2 | PTFE / EPDM / HNBR | 40 | 76.0 | 113.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 148,95 € |  | |
| 133183RIE | Rp/R 1 | PTFE / EPDM / HNBR | 25 | 57.0 | 89.0 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 64,17 € | | |
| 133186RIE | Rp/R 2 | PTFE / EPDM / HNBR | 50 | 92.0 | 134.5 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | 211,16 € | | |
| 133184RIE | Rp/R 1 1/4 | PTFE / EPDM / HNBR | 32 | 70.0 | 103.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 103,58 € | | |
| 133182RIE | Rp/R 3/4 | PTFE / EPDM / HNBR | 20 | 53.0 | 78.0 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 42,68 € | | |
| 133181RIE | Rp/R 1/2 | PTFE / EPDM / HNBR | 15 | 46.0 | 67.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 28,51 € | | |
| 133180RIE | Rp/R 3/8 | PTFE / EPDM / HNBR | 10 | 41.7 | 53.6 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 23,78 € | | |
| 133179RIE | Rp/R 1/4 | PTFE / NBR | 8 | 42.0 | 51.4 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,84 € | |
Opis
Ball valve EN 331 DVGW, nickel-plated brass, Hand lever, IT/ET, Rp/R 1, DN 25, Operating temp. -15 °C to 60 °C, PN max. 5 bar
Ball valves with full bore, for gas installations. Applications: Natural gas, LPG, town gas
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE / EPDM / HNBR |
| Delovni tlak | max. 5 bar (pressure class MOP 5 acc. to DIN EN 331) |
| Delovna temperatura | -15 °C to 60 °C for gas |
| DVGW odobritev | DIN EN 331:2013-05 |
| Material navojev | Brass |
| Ročica | Aluminium |
| Navoj | Rp/R 1 |
| DN | 25 |
| Standardni navoj | Thread acc. to ISO 7-1 |
| L [mm] | 89.0 |
| A [mm] | 105.0 |
| B [mm] | 57.0 |
