* slike so simbolične
krogelni ventil EN 331, DVGW, metuljasta ročica, IT/IT, Rp 1/4
SKU: 133187RIE
EAN: 4047322476782

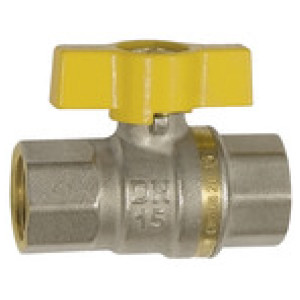

Ball valve EN 331, DVGW, nickel-plated brass, Butterfly handle, IT/IT, Rp 1/4, DN 8, Operat. temp. -15 °C to 60 °C, PN max. 5 bar
Ball valves with full bore, for gas installations. Applications: Natural gas, LPG, town gas
Čas dobave: Predvidoma 3 - 5 dni
20,65 €

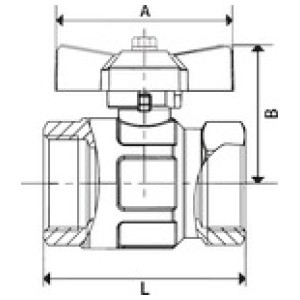

| Šifra | Navoj | Stebelno tesnilo | DN | B [mm] | A [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 133190RIE | Rp 3/4 | PTFE / EPDM / HNBR | 20 | 42.0 | 56.0 | 69.6 | Čas dobave: Predvidoma 3 - 5 dni | 41,04 € |  | |
| 133191RIE | Rp 1 | PTFE / EPDM / HNBR | 25 | 46.0 | 56.0 | 83.5 | Čas dobave: Predvidoma 3 - 5 dni | 61,18 € | | |
| 133189RIE | Rp 1/2 | PTFE / EPDM / HNBR | 15 | 36.0 | 47.0 | 61.1 | Čas dobave: Predvidoma 3 - 5 dni | 26,88 € | | |
| 133187RIE | Rp 1/4 | PTFE / NBR | 8 | 30.0 | 47.0 | 45.7 | Čas dobave: Predvidoma 3 - 5 dni | 20,65 € | | |
| 133188RIE | Rp 3/8 | PTFE / EPDM / HNBR | 10 | 30.6 | 47.0 | 48.6 | Čas dobave: Predvidoma 3 - 5 dni | 21,84 € | |
Opis
Ball valve EN 331, DVGW, nickel-plated brass, Butterfly handle, IT/IT, Rp 1/4, DN 8, Operat. temp. -15 °C to 60 °C, PN max. 5 bar
Ball valves with full bore, for gas installations. Applications: Natural gas, LPG, town gas
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE / NBR |
| Delovni tlak | max. 5 bar (pressure class MOP 5 acc. to DIN EN 331) |
| Delovna temperatura | -15 °C to 60 °C for gas |
| DVGW odobritev | DIN EN 331:2013-05 |
| Material navojev | Brass |
| Ročica - metuljček | Aluminium |
| Navoj | Rp 1/4 |
| DN | 8 |
| Standardni navoj | Thread acc. to ISO 7-1 |
| L [mm] | 45.7 |
| A [mm] | 47.0 |
| B [mm] | 30.0 |
