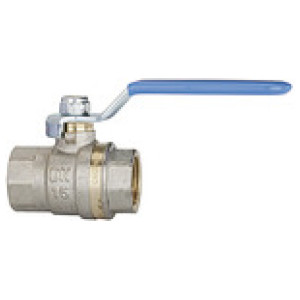

krog. ventil standar.oblika, modra jekl. ročica, IT/IT, G 1/4
SKU: 103177RIE
EAN: 4047322277754
Ball valve standard design, blue steel lever, IT/IT, nickel-plated brass, Operating temp. -15 °C to 90 °C, G 1/4, PN max. 63 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Čas dobave: Predvidoma 3 - 5 dni
18,04 €
| Šifra | Navoj | E [mm] | F [mm] | PN [bar] | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103184RIE | G 2 | 16.5 | 16.5 | 40 | 50 | 83.4 | 109.0 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | 147,44 € |  | |
| 103177RIE | G 1/4 | 12.0 | 12.0 | 63 | 8 | 37.2 | 46.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,04 € | | |
| 103183RIE | G 1 1/2 | 14.5 | 14.5 | 40 | 40 | 69.1 | 91.5 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 97,10 € | | |
| 103186RIE | G 3 | 18.5 | 18.5 | 40 | 80 | 108.0 | 156.0 | 248.0 | Čas dobave: Predvidoma 3 - 5 dni | 437,04 € | | |
| 103180RIE | G 3/4 | 10.5 | 10.5 | 40 | 20 | 48.4 | 58.0 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,40 € | | |
| 103178RIE | G 3/8 | 12.0 | 12.0 | 63 | 10 | 37.2 | 50.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,31 € | | |
| 103182RIE | G 1 1/4 | 13.5 | 13.5 | 40 | 32 | 63.1 | 80.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 64,50 € | | |
| 103185RIE | G 2 1/2 | 18.5 | 18.5 | 40 | 65 | 97.0 | 133.0 | 248.0 | Čas dobave: Predvidoma 3 - 5 dni | 290,53 € | | |
| 103181RIE | G 1 | 12.0 | 12.0 | 40 | 25 | 52.3 | 69.0 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 39,92 € | | |
| 103179RIE | G 1/2 | 9.5 | 9.5 | 40 | 15 | 44.1 | 50.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,36 € | |
Opis
Ball valve standard design, blue steel lever, IT/IT, nickel-plated brass, Operating temp. -15 °C to 90 °C, G 1/4, PN max. 63 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Tehnični podatki in specifikacije
| Material | Nickel-plated brass |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 90 |
| Navoj | G 1/4 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | 2 O-rings HNBR/EPDM peroxide crosslinked, sealing ring PTFE |
| PN [bar] | 63 |
| Ročica | Steel, with plastic coating |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| Material navojev | Brass with a bare metal surface |
| DN | 8 |
| L [mm] | 46.0 |
| A [mm] | 85.0 |
| B [mm] | 37.2 |
| E [mm] | 12.0 |
| F [mm] | 12.0 |
