* slike so simbolične

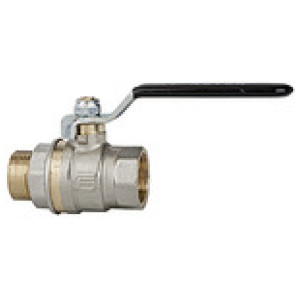

krog. ventil standar.obilka, črna jekl. ročica, IT/ET, G 1 1/2
SKU: 103201RIE
EAN: 4047322277976
Ball valve standard design, black steel lever, IT/ET, nickel-plated brass, Operating temp. -15°C to 90°C, G 1 1/2, PN max. 40 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Čas dobave: Predvidoma 3 - 5 dni
97,10 €
ali od 17,76 € / mesec
Izračunaj obrok
Obrestno financiranje
- 17,76 € x 6 mesecev
- 35,12 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

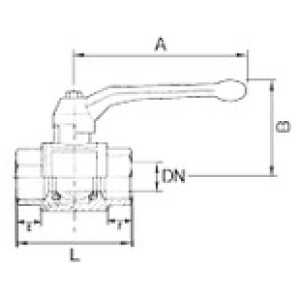

| Šifra | Navoj | E [mm] | F [mm] | DN | PN [bar] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103200RIE | G 1 1/4 | 13.0 | 13.5 | 32 | 40 | 63.1 | 91.5 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 64,50 € |  | |
| 103202RIE | G 2 | 16.5 | 16.5 | 50 | 40 | 83.4 | 121.0 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | 147,44 € | | |
| 103195RIE | G 1/4 | 9.4 | 12.0 | 8 | 63 | 37.2 | 51.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,04 € | | |
| 103198RIE | G 3/4 | 10.5 | 10.5 | 20 | 40 | 48.4 | 69.5 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,40 € | | |
| 103196RIE | G 3/8 | 8.6 | 12.0 | 10 | 63 | 37.2 | 53.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,31 € | | |
| 103197RIE | G 1/2 | 9.5 | 9.5 | 15 | 40 | 44.1 | 59.8 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,36 € | | |
| 103199RIE | G 1 | 12.0 | 12.0 | 25 | 40 | 52.3 | 78.8 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 39,92 € | | |
| 103201RIE | G 1 1/2 | 14.5 | 14.5 | 40 | 40 | 69.1 | 104.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 97,10 € | |
Opis
Ball valve standard design, black steel lever, IT/ET, nickel-plated brass, Operating temp. -15°C to 90°C, G 1 1/2, PN max. 40 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Tehnični podatki in specifikacije
| Material | Nickel-plated brass |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 90 |
| Navoj | G 1 1/2 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | 2 O-rings HNBR/EPDM peroxide crosslinked, sealing ring PTFE |
| PN [bar] | 40 |
| Ročica | Steel, with plastic coating |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| Material navojev | Brass with a bare metal surface |
| DN | 40 |
| L [mm] | 104.0 |
| A [mm] | 130.0 |
| B [mm] | 69.1 |
| E [mm] | 14.5 |
| F [mm] | 14.5 |
