* slike so simbolične

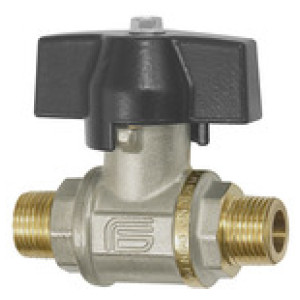

krog. ventil robustnejša oblika, metuljasta ročica, ET/ET, R 1/4
SKU: 103297RIE
EAN: 4047322216395
Ball valve heavy duty design, Butterfly handle, ET/ET, nickel-plated brass, Operating temp. -20°C to 130°C, R 1/4, PN max. 100 bar
Applications: Compressed air, water, neutral and non-toxic gases, fuel oil (light distillate), fuel oil (heavy), lubricating oils, diesel oils.
Čas dobave: Predvidoma 3 - 5 dni
22,00 €

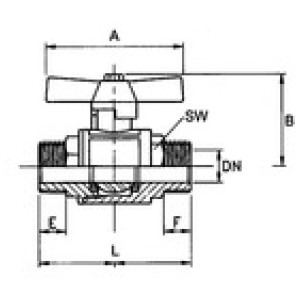

| Šifra | Navoj | DN | E [mm] | F [mm] | a/f [mm] | A [mm] | B [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103298RIE | R 3/8 | 10 | 11.2 | 11.2 | 21 | 45.0 | 51.0 | 66.0 | Čas dobave: Predvidoma 3 - 5 dni | 26,34 € |  | |
| 103301RIE | R 1 | 25 | 19.0 | 19.0 | 40 | 70.0 | 70.0 | 107.0 | Čas dobave: Predvidoma 3 - 5 dni | 79,52 € | | |
| 103299RIE | R 1/2 | 15 | 14.9 | 14.9 | 27 | 55.0 | 54.5 | 82.0 | Čas dobave: Predvidoma 3 - 5 dni | 33,09 € | | |
| 103300RIE | R 3/4 | 20 | 16.1 | 16.1 | 33 | 55.0 | 66.0 | 94.0 | Čas dobave: Predvidoma 3 - 5 dni | 50,57 € | | |
| 103297RIE | R 1/4 | 8 | 11.0 | 11.0 | 18 | 45.0 | 43.0 | 54.5 | Čas dobave: Predvidoma 3 - 5 dni | 22,00 € | |
Opis
Ball valve heavy duty design, Butterfly handle, ET/ET, nickel-plated brass, Operating temp. -20°C to 130°C, R 1/4, PN max. 100 bar
Applications: Compressed air, water, neutral and non-toxic gases, fuel oil (light distillate), fuel oil (heavy), lubricating oils, diesel oils.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 130 |
| Navoj | R 1/4 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE |
| PN [bar] | 100 |
| Ročica - metuljček | Aluminium, painted black |
| Standardni navoj | R thread acc. to DIN EN 10226 (ISO 7-1) |
| Material navojev | Brass with a bare metal surface |
| Ohišje | Nickel-plated brass |
| DN | 8 |
| L [mm] | 54.5 |
| A [mm] | 45.0 |
| B [mm] | 43.0 |
| E [mm] | 11.0 |
| F [mm] | 11.0 |
| a/f [mm] | 18 |
